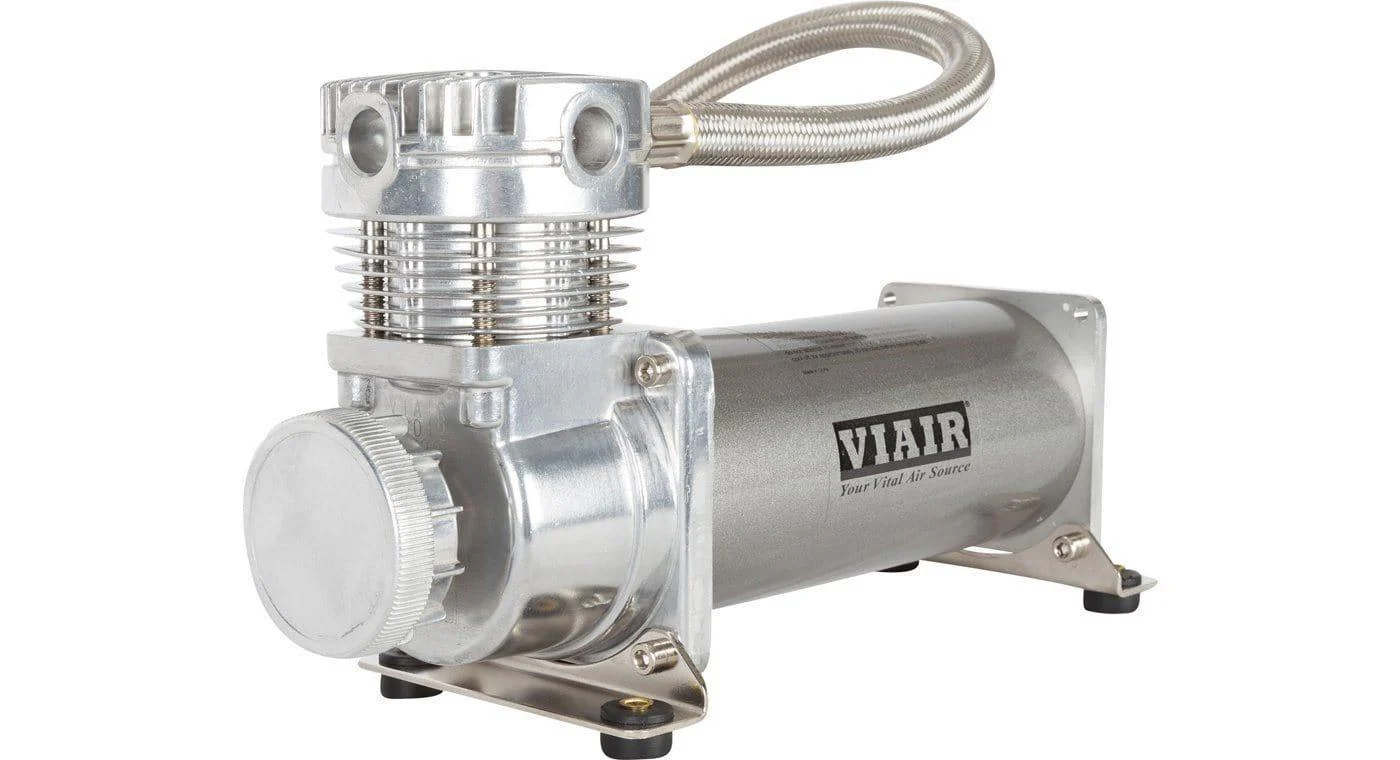

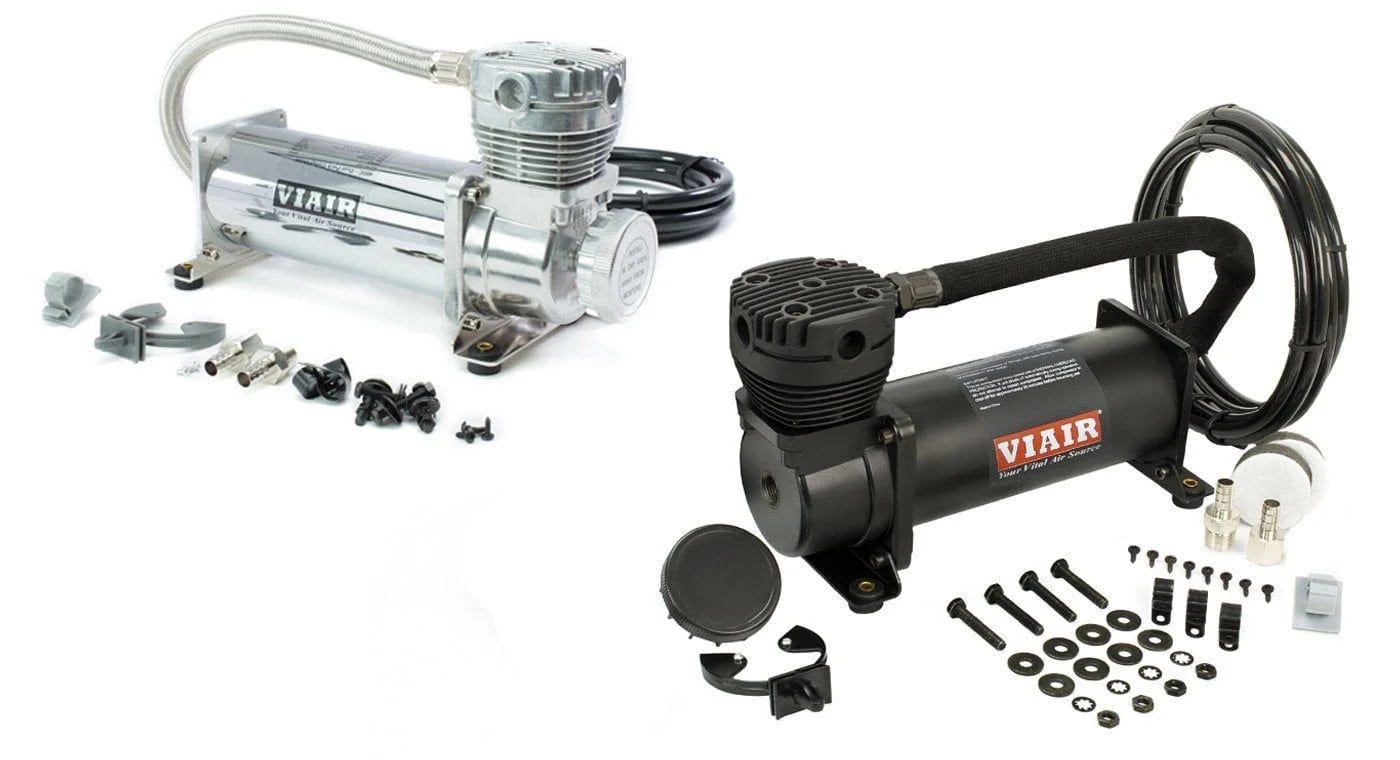

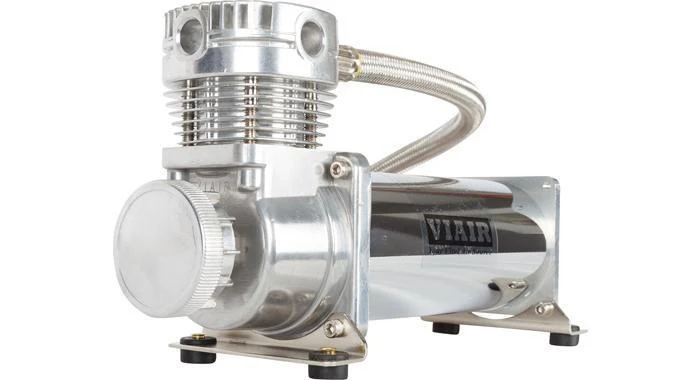

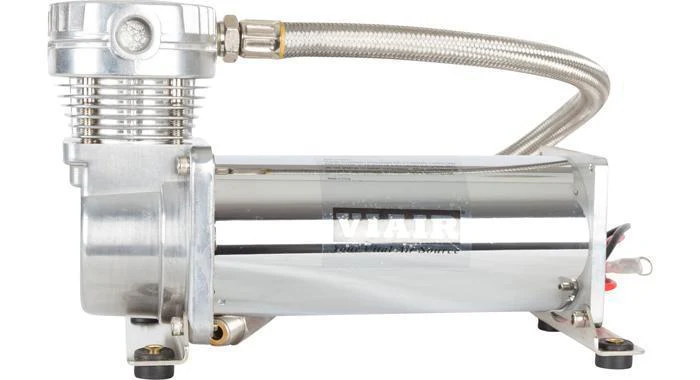

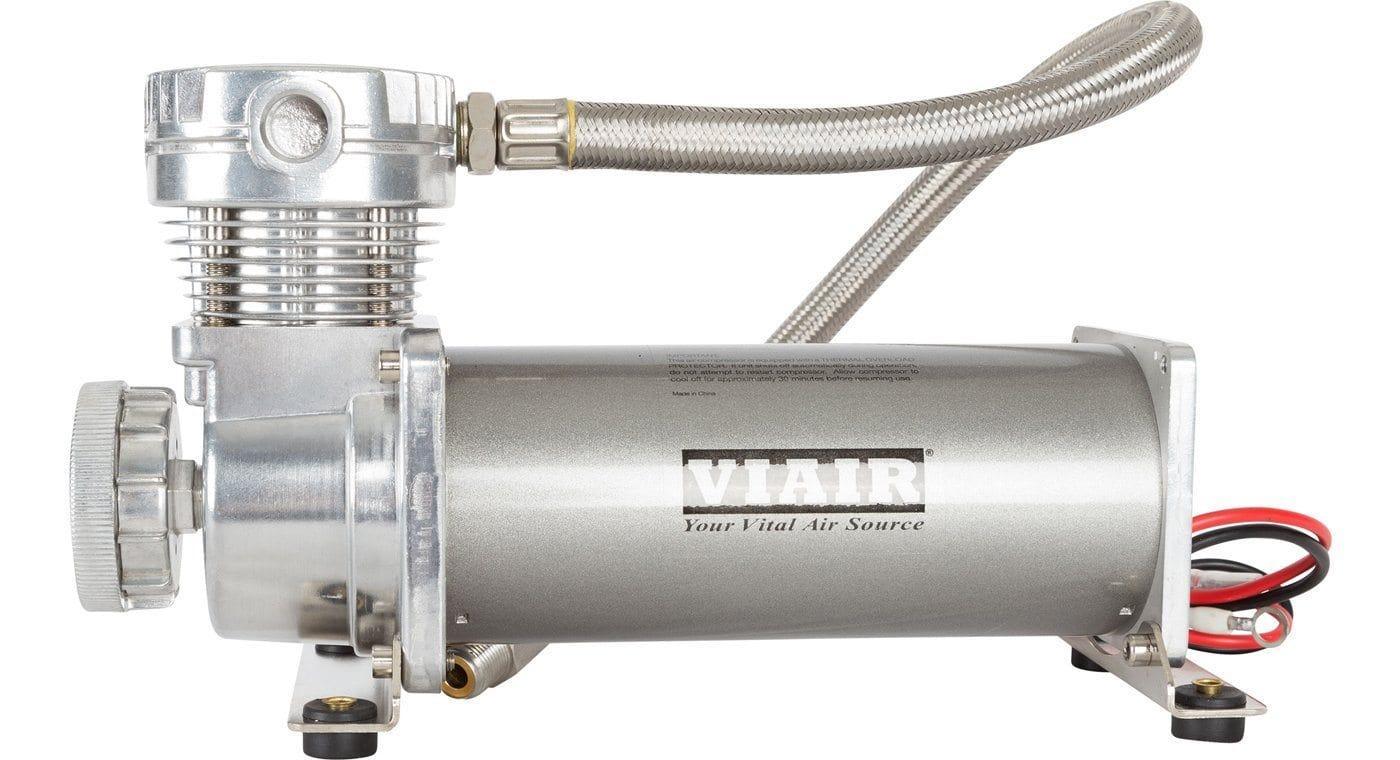

Viair 480C Air Compressor
THE ULTIMATE ROAD WARRIOR
Welcome to the pinnacle of air compressor technology - the Viair 480C Air Compressor. Engineered for versatility, this unit seamlessly merges strength, speed, and efficiency, ensuring you're always equipped with the best for your pneumatic needs.
- Versatile Application: Whether it's inflating tires, using air tools, fine-tuning air suspension, or making your HornBlasters train horns echo, the Viair 480C is your dependable companion.
- High-End Construction: The unit's permanent magnetic motor, combined with an oil-less design and gearless direct drive motor, ensures unmatched durability and efficiency.
- Safety and Durability: With features like the automatic reset thermal overload protection, moisture & dirt resistance, and stainless steel valves, you're investing in a compressor built for longevity.
- Easy Installation: Every essential for a seamless installation, including a remote mount intake filter assembly, stainless steel braided leader hose, and insulated wiring, is right in the box.
Dive into a world of unparalleled pneumatic prowess with the Viair 480C Air Compressor. Designed for those who settle for nothing but the best.
Note: Use thread sealant for proper installation. Thread tape is not recommended. Properly sealed, recommended torque for 1/8″ is 10 ~ 11 ft. lbs. Recommended torque for 1/4″ and 3/8″ is 12 ~ 15 ft. lbs.
| PSI | CFM | A | BAR | LPM | A |
|---|---|---|---|---|---|
| 0 | 1.86 | 10 | 0 | 52.7 | 10 |
| 10 | 1.75 | 12 | 1.0 | 47.5 | 13 |
| 20 | 1.59 | 14 | 2.0 | 43.2 | 15 |
| 30 | 1.52 | 15 | 3.0 | 40.7 | 16 |
| 40 | 1.45 | 16 | 4.0 | 38.1 | 18 |
| 50 | 1.41 | 17 | 5.0 | 35.3 | 18 |
| 60 | 1.33 | 18 | 6.0 | 32.6 | 19 |
| 70 | 1.26 | 18 | 7.0 | 30.0 | 20 |
| 80 | 1.20 | 19 | 8.0 | 27.0 | 22 |
| 90 | 1.13 | 19 | 9.0 | 25.0 | 22 |
| 100 | 1.07 | 20 | 10.0 | 22.3 | 21 |
| 110 | 0.99 | 21 | 11.0 | 20.1 | 21 |
| 120 | 0.93 | 23 | 12.0 | 18.3 | 21 |
| 130 | 0.88 | 22 | 13.0 | 16.0 | 20 |
| 140 | 0.82 | 22 | 14.0 | 14.0 | 19 |
| 150 | 0.75 | 21 | |||
| 160 | 0.71 | 21 | |||
| 170 | 0.67 | 21 | |||
| 180 | 0.61 | 21 | |||
| 190 | 0.55 | 20 | |||
| 200 | 0.51 | 19 |
* Supply Voltage: 13.8 Volts
| 2.5 GALLON TANK | FILL RATE |
|---|---|
| 0 to 145 PSI | 2 min. 50 sec. (± 10 sec.) |
| 110 to 145 PSI | 57 sec. (± 05 sec.) |
| 0 to 200 PSI | 5 min. 02 sec. (± 10 sec.) |
| 165 to 200 PSI | 1 min. 30 sec. (± 05 sec.) |
| 5.0 GALLON TANK | FILL RATE |
| 0 to 145 PSI | 6 min. 02 sec. (± 10 sec.) |
| 110 to 145 PSI | 1 min. 55 sec. (± 05 sec.) |
| 0 to 200 PSI | 10 min. 30 sec. (± 15 sec.) |
| 165 to 200 PSI | 3 min. 10 sec. (± 10 sec.) |
* Supply Voltage: 13.8 Volts

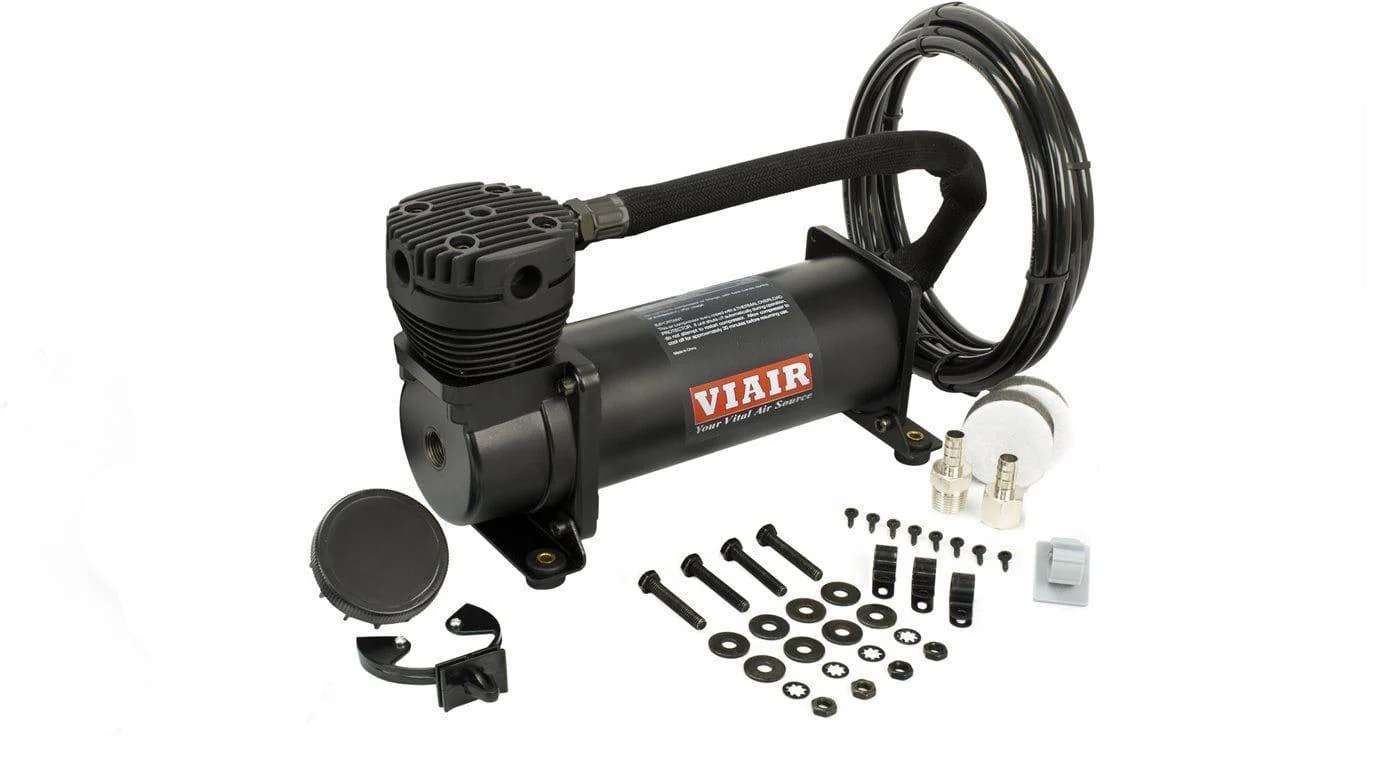

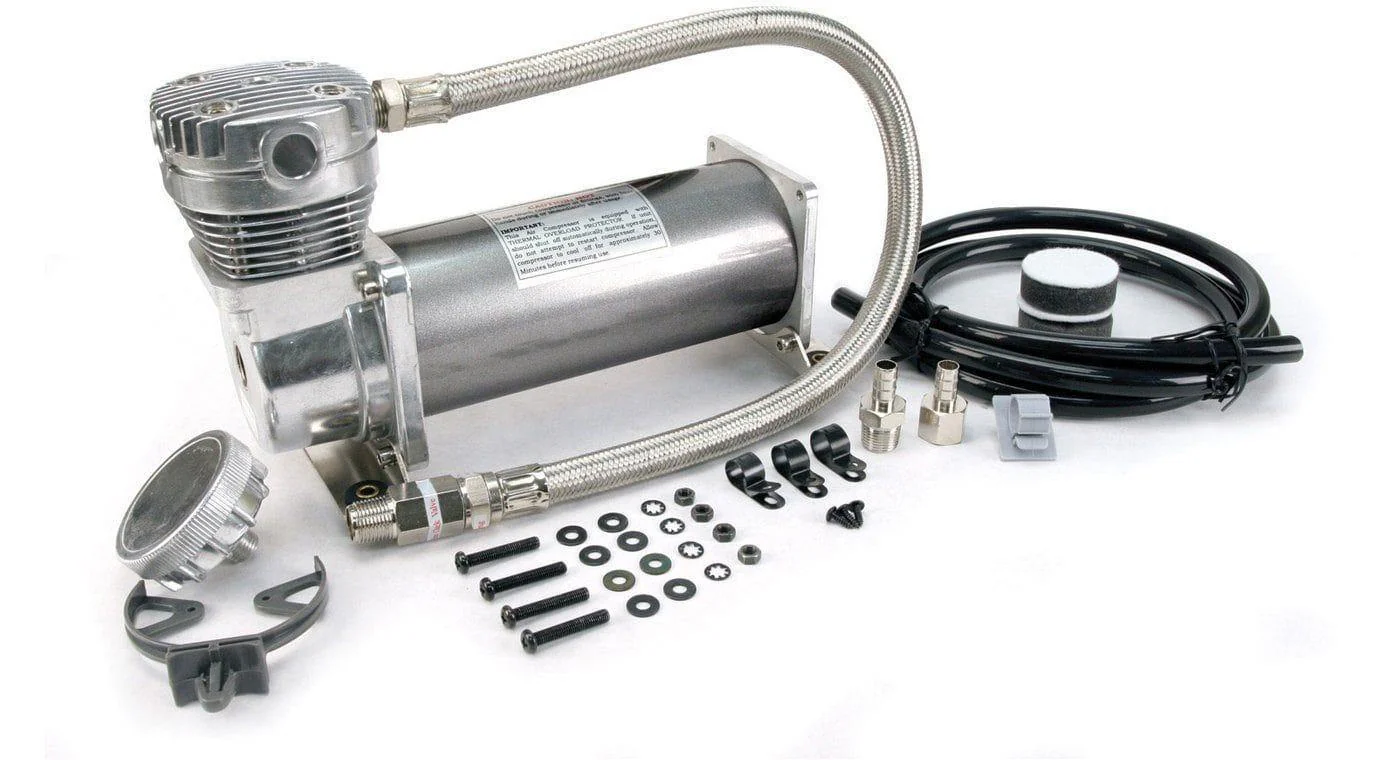

- Viair 480C Air Compressor
- Chrome/Pewter & Black 3/8" NPT Braided Leader Hose & Check Valve
- Chrome/Pewter & Black Remote Mount Two-Stage Air Filter
- Replacement Filter Elements
- 1 Year Manufacturer's Defect Warranty
- Mounting Hardware
| SPECIFICATION | |
|---|---|
| Part Number | AC-480 / AC-480C / AC-480K |
| Voltage | 12 Volts DC |
| Max Amperage | 23 Amps |
| Maximum Duty Cycle | 100% @ 100 PSI |
| Maximum Pressure | 200 PSI |
| Max Tank Size | 5 Gallons |
| CFM @ 0 PSI | 1.86 CFM |
| CFM @ 100 PSI | 1.07 CFM |
| Length | 10.87″ (276.09 mm) |
| Width | 4.2″ (106.68 mm) |
| Height | 6.75″ (171.45 mm) |
| Weight | 11.05 lb (3.15 Kg) |
-
