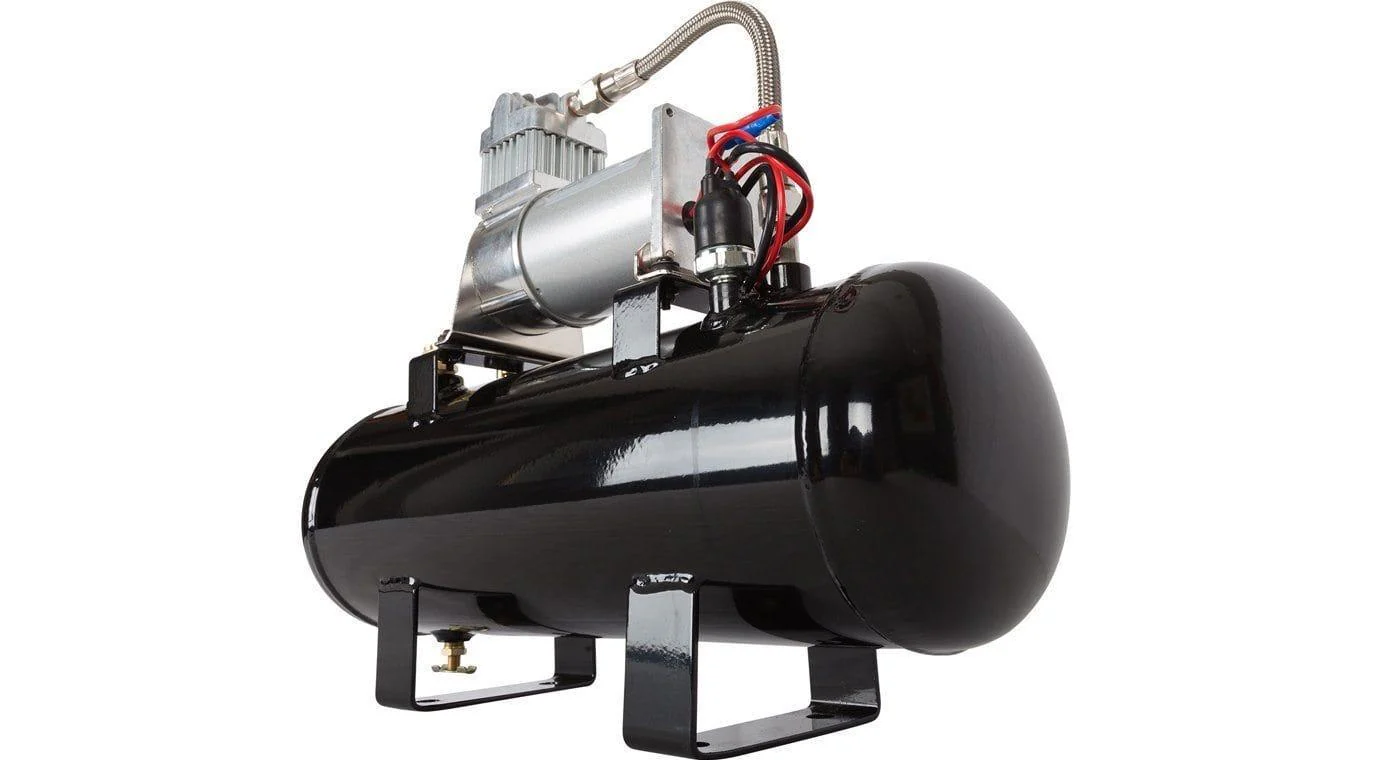

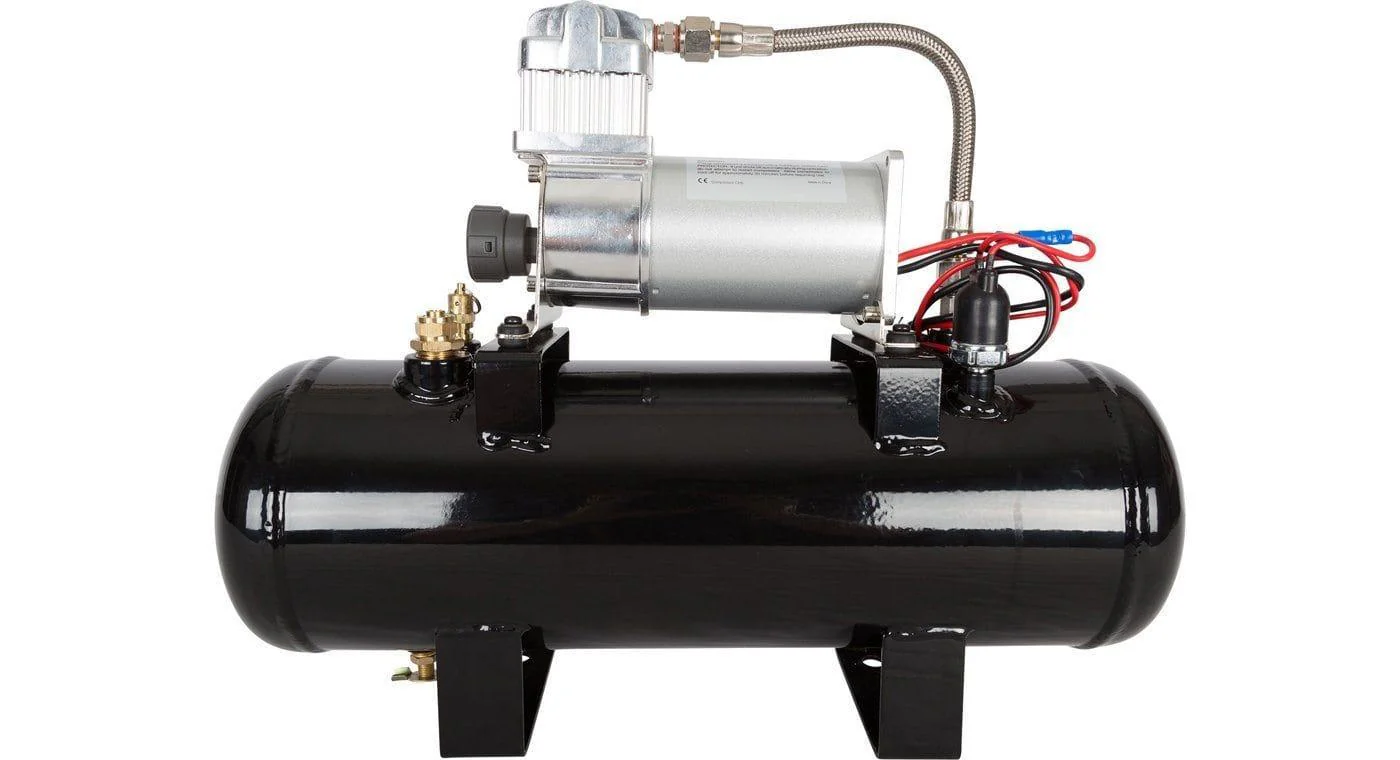

Viair 145 PSI High Flow 2 Gallon Air Source Kit
GO WITH THE FLOW.
Yo, check it out! The Viair 20005 is a dope compressor that comes fully loaded with all the bells and whistles. It’s pre-wired and pre-plumbed for your convenience, and the compressor is mounted to the tank using heavy-duty vibration isolators to keep it quiet. The tank recharges from 110 to 145 PSI in just over a minute, so you can get back to blasting your air horns or inflating your tires in no time. Just supply power, and the unit automatically builds up to 145 PSI and turns off when it’s done. And when the pressure drops below 110 PSI, the compressor kicks back on to recharge your air supply. It’s all preassembled and ready to go, so what are you waiting for? Get that air flowing! 💨
- Pre-Installed Pressure Switch
- 1/4" NPT 175 PSI Safety Blow-Off
- 1/4" Drain Cock
- 1/2" NPT Compression Fitting
- Insulated Wiring with Connectors
- Installation Instructions
(Note: Tank mounted air compressors are not fully sealed. For this reason, the manufacturer recommends the tank/compressor system be mounted in the upright position in an enclosed space away from moisture, dirt, debris, etc...)
| PSI | CFM | A | BAR | LPM | A |
|---|---|---|---|---|---|
| 0 | 1.59 | 10 | 0 | 45.0 | 10 |
| 10 | 1.49 | 12 | 1.0 | 40.2 | 13 |
| 20 | 1.33 | 13 | 2.0 | 32.1 | 14 |
| 30 | 1.11 | 14 | 3.0 | 29.0 | 15 |
| 40 | 1.04 | 15 | 4.0 | 26.4 | 16 |
| 50 | 0.99 | 15 | 5.0 | 24.2 | 16 |
| 60 | 0.92 | 16 | 6.0 | 22.0 | 17 |
| 70 | 0.87 | 16 | 7.0 | 21.0 | 19 |
| 80 | 0.81 | 17 | 8.0 | 19.4 | 18 |
| 90 | 0.76 | 17 | 9.0 | 17.5 | 17 |
| 100 | 0.74 | 19 | 10.0 | 15.3 | 17 |
| 110 | 0.71 | 19 | |||
| 120 | 0.67 | 18 | |||
| 130 | 0.62 | 17 | |||
| 140 | 0.57 | 17 | |||
| 150 | 0.51 | 17 |
* Supply Voltage: 13.8 Volts
| 2.0 GALLON TANK | FILL RATE |
|---|---|
| 0 to 145 PSI | 3 min. 40 sec.(± 10 sec.) |
| 110 to 145 PSI | 1 min. 15 sec. (± 05 sec.) |
* Supply Voltage: 13.8 Volts
- Viair 280c Air Compressor
- 2 Gallon Viair Air Tank
- 110/145 PSI Pressure Switch
- 145 PSI Safety Valve & Drain Cock
- 1/2" Compression Fitting
| Part Number | MC-228 |
| Manufacturer | Viair |
| Manufacturers Part Number | 20005 |
| Air Source Kit | |
| Operating Pressure | 145 PSI |
| Length | 18.9″ (480.06 mm) |
| Width | 5.9″ (149.86 mm) |
| Height | 13.7″ (347.98 mm) |
| Volume | 2.0 gal (8.8 L) |
| Voltage | 12 Volts |
| Max Amperage | 16 Amps |
| Max Output | 1.31 CFM |
| Maximum Duty Cycle | 30% @ 100 PSI |
-
