Viair 400C Air Compressor
FASTER THAN A LOOTER WITH A TV
Speed meets efficiency with the Viair 400C Air Compressor. Ideal for powering train horns, air horns, and even light tire inflation, this compressor packs a punch with a fast 2.62 CFM and only 28 amps of power draw. Recharge your 2.5-gallon tank from 110-150 PSI in just 48 seconds or your 5-gallon tank in 1 minute and 40 seconds.
- Permanent Magnetic Motor
- Oil-less Design
- High-Performance PTFE Piston Ring
- Stainless Steel Valves
- Moisture & Dirt Resistant
- Gearless Direct Drive Motor
- Anodized Aluminum Alloy Cylinder
- Automatic Reset Thermal Overload Protector
- Mounting Plates with Vibration Isolators
- Stainless Steel 1/4" Braided Leader Hose
- Remote Mountable Intake Filter Assembly
- Insulated Wiring with Connectors
Note: Use thread sealant for proper installation. Thread tape is not recommended. Properly sealed, recommended torque for 1/8″ is 10 ~ 11 ft. lbs. Recommended torque for 1/4″ and 3/8″ is 12 ~ 15 ft. lbs.
| PSI | CFM | A | BAR | LPM | A |
|---|---|---|---|---|---|
| 0 | 2.62 | 16 | 0 | 74.0 | 16 |
| 10 | 2.39 | 18 | 1.0 | 65.0 | 20 |
| 20 | 2.21 | 20 | 2.0 | 60.0 | 23 |
| 30 | 2.11 | 22 | 3.0 | 56.0 | 25 |
| 40 | 2.01 | 24 | 4.0 | 53.0 | 27 |
| 50 | 1.93 | 25 | 5.0 | 49.0 | 28 |
| 60 | 1.84 | 26 | 6.0 | 46.0 | 28 |
| 70 | 1.73 | 27 | 7.0 | 42.0 | 28 |
| 80 | 1.65 | 27 | 8.0 | 38.0 | 28 |
| 90 | 1.52 | 27 | 9.0 | 35.0 | 27 |
| 100 | 1.45 | 27 | 10.0 | 31.0 | 27 |
| 110 | 1.35 | 27 | |||
| 120 | 1.26 | 27 | |||
| 130 | 1.19 | 27 | |||
| 140 | 1.08 | 27 | |||
| 150 | 1.01 | 26 |
* Supply Voltage: 13.8 Volts
| 2.5 GALLON TANK | FILL RATE |
|---|---|
| 0 to 105 PSI | 1 min. 27 sec. (± 05 sec.) |
| 85 to 105 PSI | 21 sec. (± 03 sec.) |
| 0 to 145 PSI | 2 min. 20 sec. (± 05 sec.) |
| 110 to 145 PSI | 48 sec. (± 03 sec.) |
| 5.0 GALLON TANK | FILL RATE |
| 0 to 105 PSI | 2 min. 55 sec. (± 10 sec.) |
| 85 to 105 PSI | 45 sec. (± 05 sec.) |
| 0 to 145 PSI | 4 min. 50 sec. (± 10 sec.) |
| 110 to 145 PSI | 1 min. 40 sec. (± 05 sec.) |
* Supply Voltage: 13.8 Volts

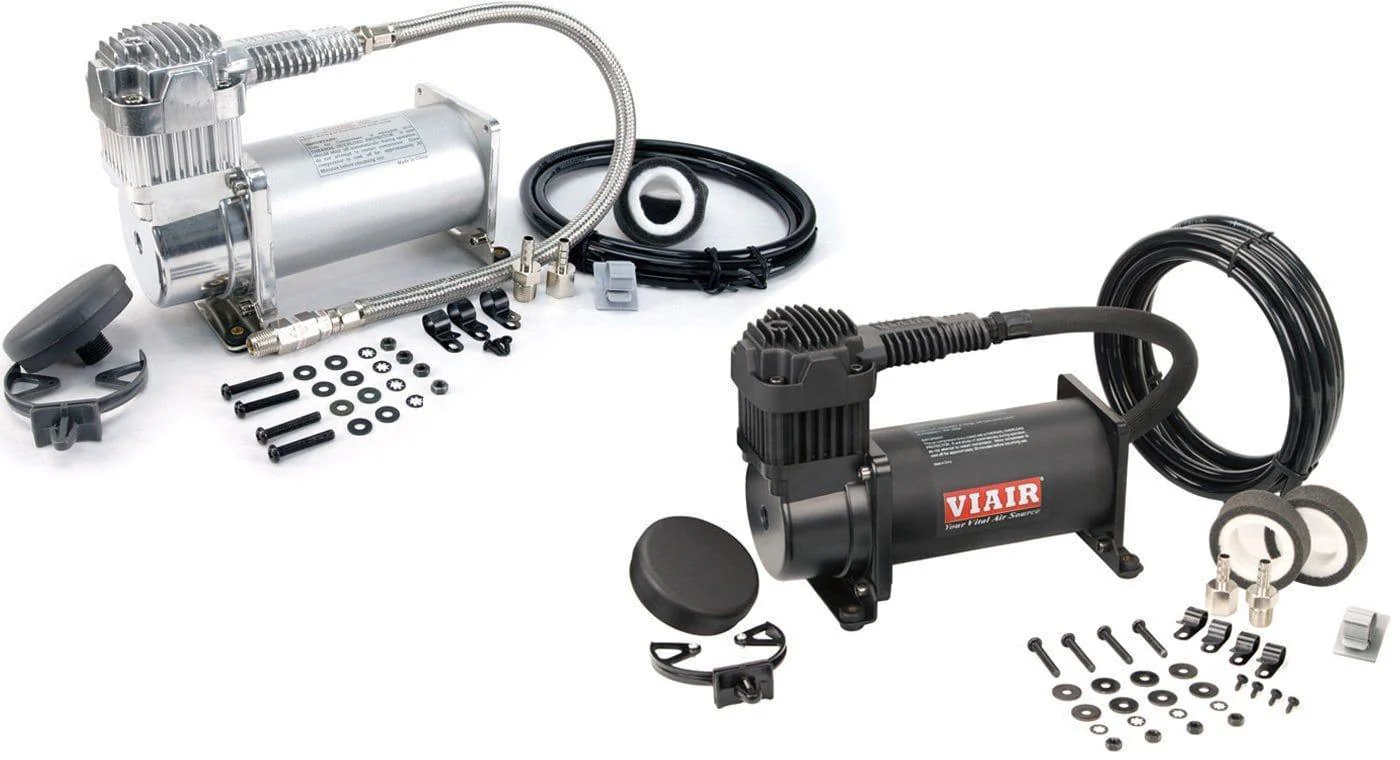

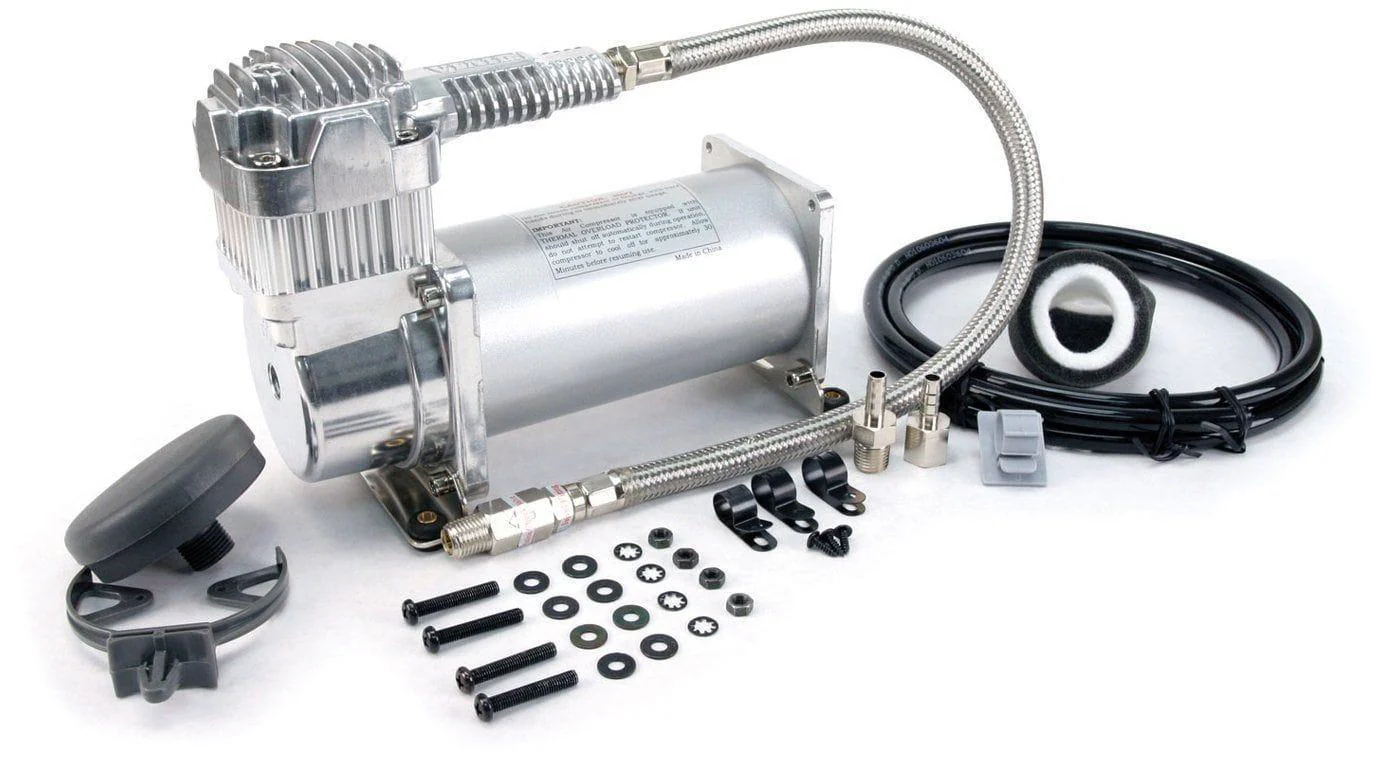

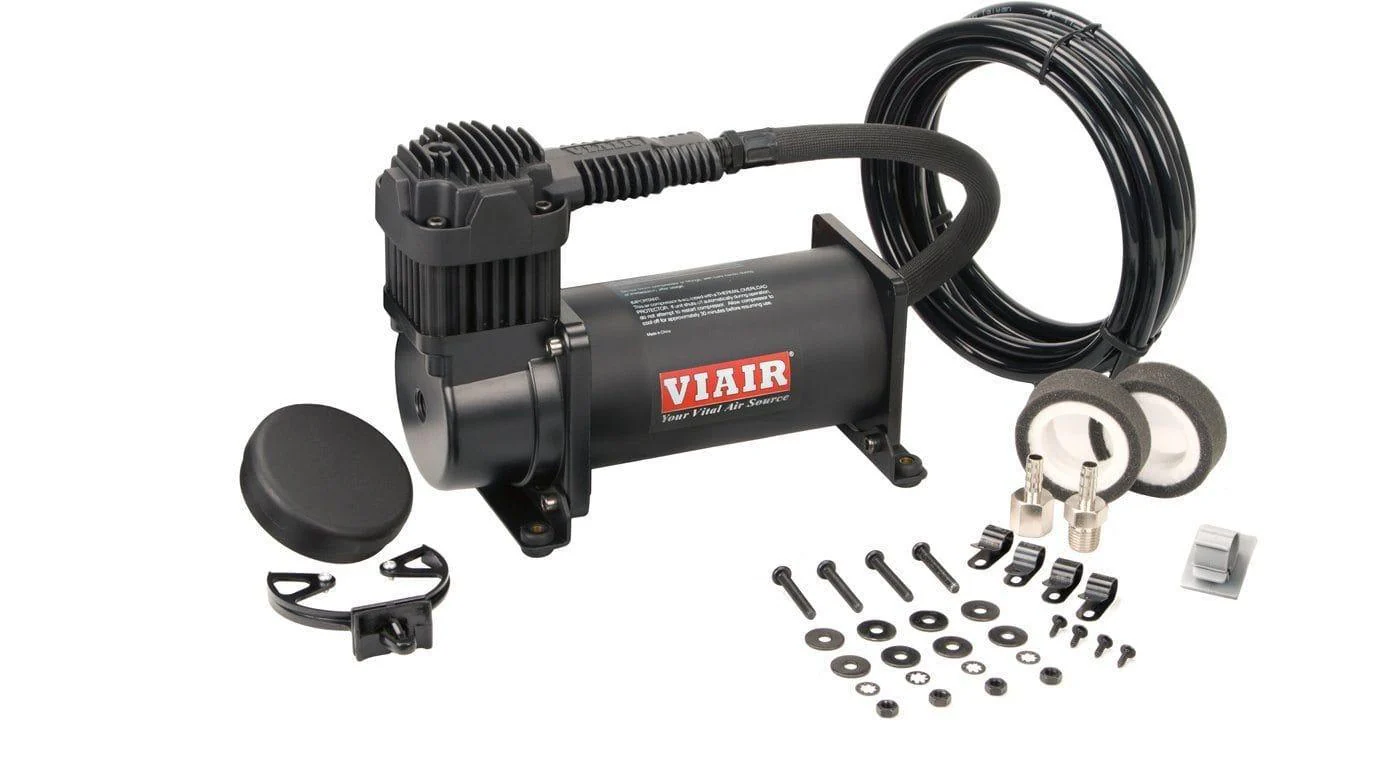

- Viair 400c Air Compressor
- 1/4" NPT Stainless & Black Braided Leader Hose & Check Valve
- Remote Mountable Two-Stage Air Filter
- Replacement Filter Elements
- 1 Year ManufactureR's Defect Warranty
- Mounting Hardware
| SPECIFICATION | |
|---|---|
| Part Number | AC-400C, AC-400K |
| Manufacturers Part Number | 40040, 40048 |
| Voltage | 12 Volts DC |
| Max Amperage | 30 Amps |
| Maximum Duty Cycle | 33% @ 100 PSI |
| Maximum Pressure | 150 PSI |
| Max Tank Size | 5 Gallons |
| CFM @ 0 PSI | 2.62 CFM |
| Length | 9″ (228.6 mm) |
| Width | 4″ (101.6 mm) |
| Height | 6.75″ (171.5 mm) |
| Weight | 6.95 lb (3.15 Kg) |
-
