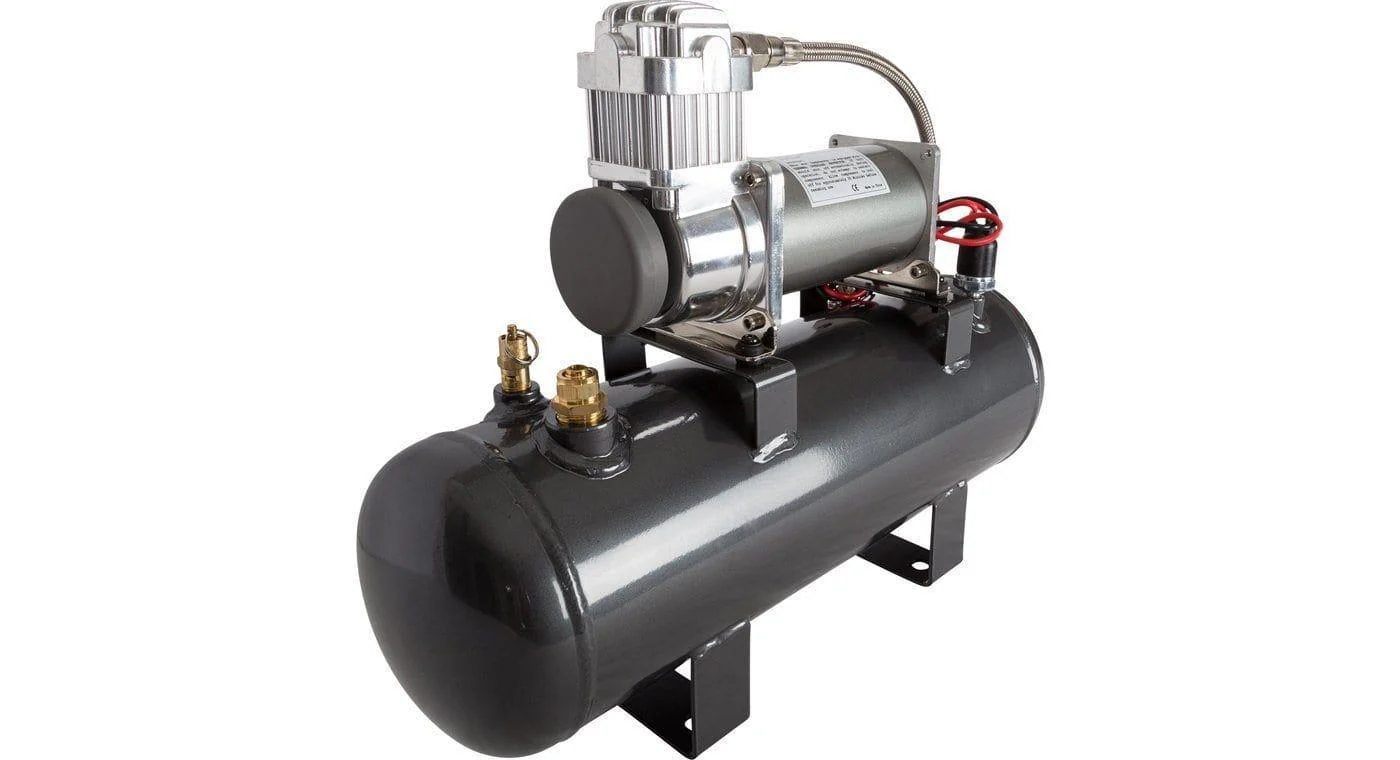

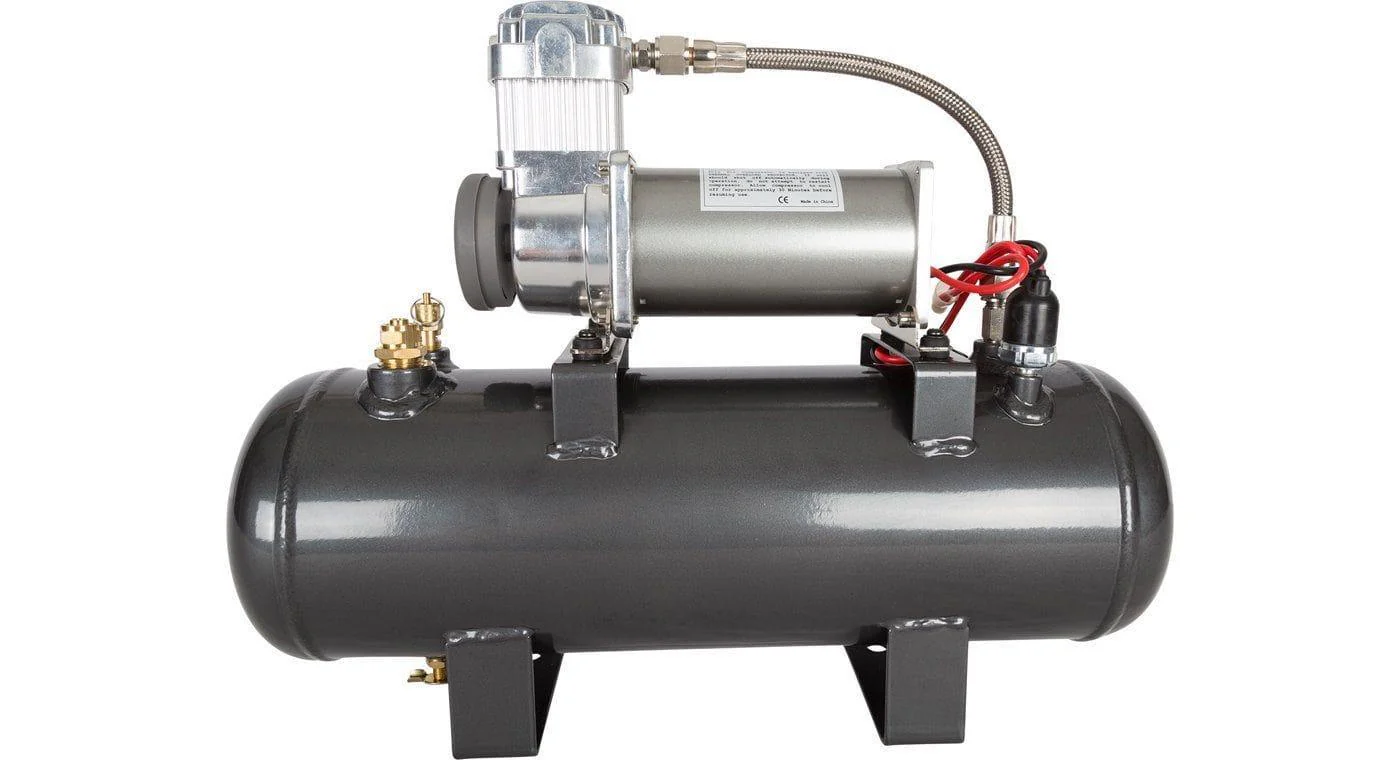

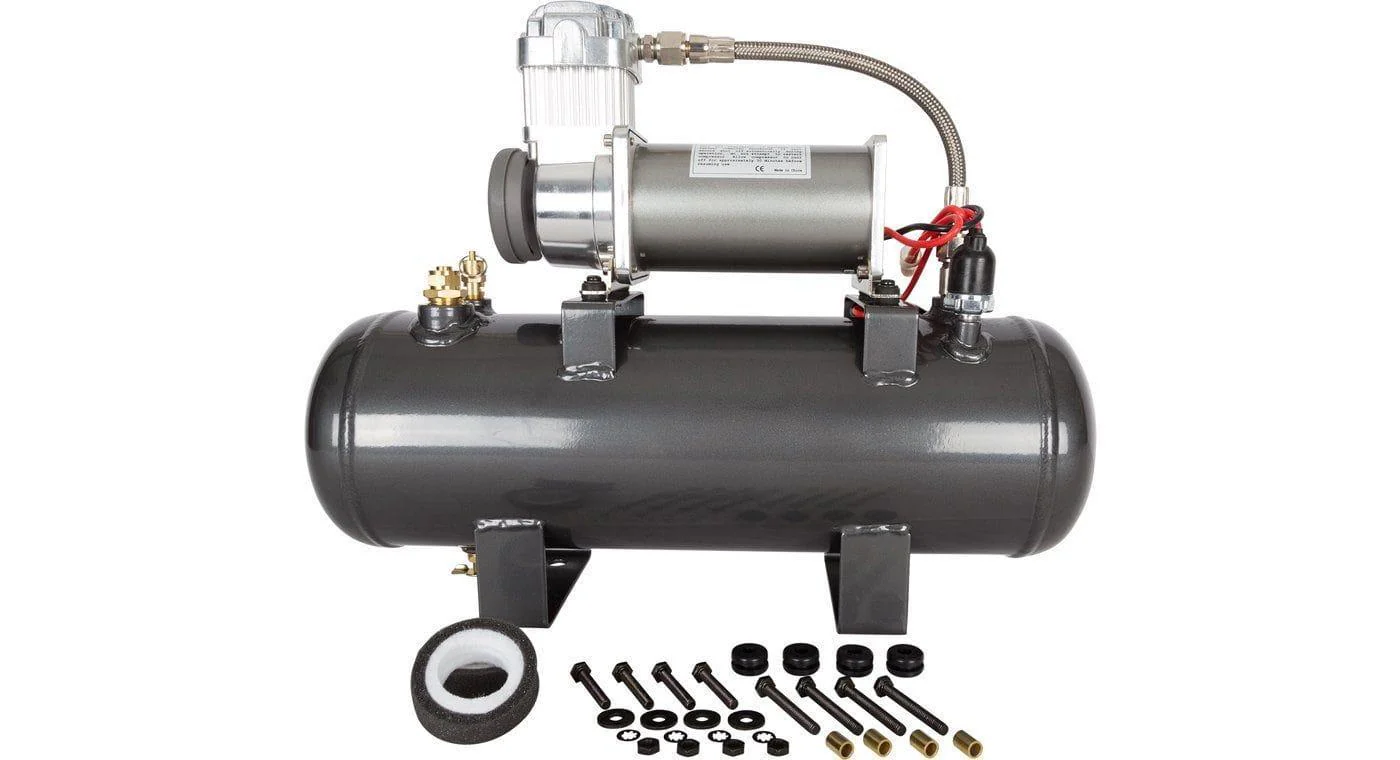

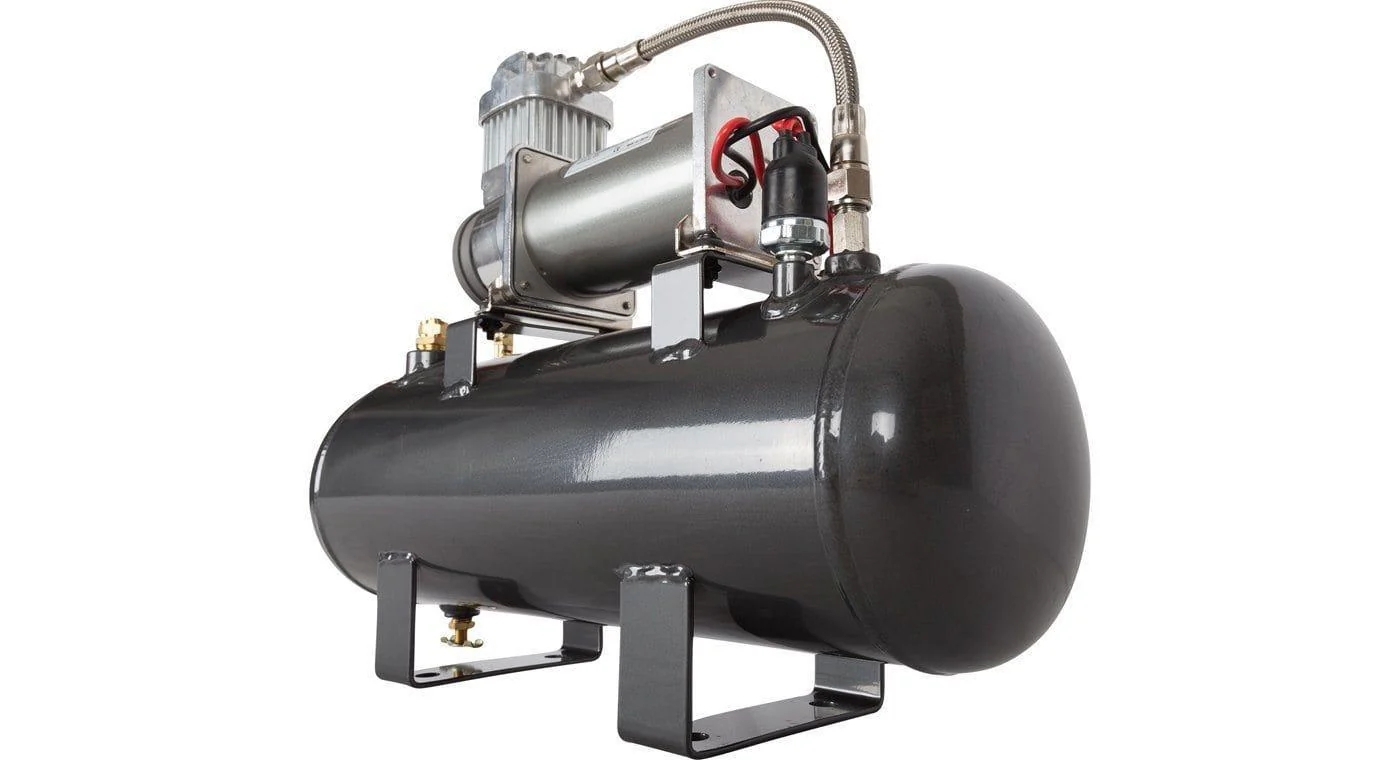

Viair 200 PSI Fast Fill 2 Gallon Air Source Kit
FAST AND FURIOUS.
Need some serious air power without the hassle? Meet the Viair 200 PSI Fast-Fill 2-Gallon Air Source Kit! It’s all-in-one, reliable, and lightning fast. Pre-wired and pre-plumbed for easy installation, it’s perfect for powering your horns, suspension, tires, and inflatables. And it’s a speedy one, filling the 2-gallon tank in 5.5 minutes and recharging from 165-200 PSI in just 1.25 minutes. Plus, it’s easy to install - just connect the pressure switch, make a solid ground, and connect the air line. Let’s get blowing!
- Pre-Installed Pressure Switch
- 1/4" NPT 250 PSI Safety Blow-Off
- 1/4" Drain Cock
- 1/2" NPT Compression Fitting
- Insulated Wiring with Connectors
- Installation Instructions
(Note: Tank mounted air compressors are not fully sealed. For this reason, the manufacturer recommends the tank/compressor system be mounted in the upright position in an enclosed space away from moisture, dirt, debris, etc...)
| PSI | CFM | A | BAR | LPM | A |
|---|---|---|---|---|---|
| 0 | 1.58 | 12 | 0 | 44.7 | 12 |
| 10 | 1.45 | 13 | 1.0 | 38.1 | 13 |
| 20 | 1.22 | 14 | 2.0 | 33.3 | 15 |
| 30 | 1.17 | 15 | 3.0 | 30.6 | 16 |
| 40 | 1.09 | 17 | 4.0 | 29.1 | 17 |
| 50 | 1.06 | 17 | 5.0 | 27.1 | 18 |
| 60 | 1.02 | 17 | 6.0 | 25.3 | 19 |
| 70 | 0.97 | 18 | 7.0 | 24.0 | 20 |
| 80 | 0.92 | 18 | 8.0 | 22.4 | 21 |
| 90 | 0.88 | 19 | 9.0 | 21.0 | 23 |
| 100 | 0.85 | 20 | 10.0 | 19.5 | 21 |
| 110 | 0.81 | 21 | 11.0 | 18.2 | 20 |
| 120 | 0.78 | 22 | 12.0 | 16.7 | 19 |
| 130 | 0.74 | 23 | 13.0 | 15.2 | 19 |
| 140 | 0.71 | 21 | 14.0 | 13.5 | 18 |
| 150 | 0.67 | 20 | |||
| 160 | 0.64 | 20 | |||
| 170 | 0.60 | 19 | |||
| 180 | 0.57 | 19 | |||
| 190 | 0.53 | 19 | |||
| 200 | 0.49 | 18 |
* Supply Voltage: 13.8 Volts
| 2.0 GALLON TANK | FILL RATE |
|---|---|
| 0 to 200 PSI | 5 min. 30 sec. (± 15 sec.) |
| 165 to 200 PSI | 1 min. 25 sec. (± 05 sec.) |
* Supply Voltage: 13.8 Volts
- Viair 380c Air Compressor
- 2 Gallon Viair Air Tank
- 165/200 PSI Pressure Switch
- 150 PSI Safety Valve & Drain Cock
- 1/2" Compression Fitting
- Part Number: MC-238
- Manufacturer: Viair
- Model: 20007
- Air Source Kit
- Operating Pressure: 200 PSI
- Unit Length: 19.0″ (482.6 mm)
- Unit Width: 5.9″ (149.86 mm)
- Unit Height: 14.2″ (360.68 mm)
- Tank Volume: 2.0 gal (8.8 L)
- Voltage: 12 Volts
- Max Amperage: 16 Amps
- Max Output: 1.58 CFM
- Compressor Maximum Duty Cycle: 100% @ 100 PSI
-
Money-Back Guarantee/Refund Policy
All merchandise unless otherwise indicated may be returned within 30 days from the shipment arrival date for a refund. A Returned Merchandise Authorization (RMA) number is required for all returns. A 15% restocking fee may apply. Additional deductions may be made to reflect the products current market value. These terms apply to all refunds. Most products are shipped with a refund/replacement guarantee period unless otherwise noted in the product listing. Customers must inform HornBlasters.com of any order discrepancy within 7 days from the invoice date so that we may investigate and resolve the situation accordingly. -
Warranty
This product is backed by Viair's One-Year Manufacturer's Defect Warranty! -
HornBlasters.com Satisfaction Guarantee
HornBlasters.com offers our customers a 30-day satisfaction replacement or refund guarantee on all purchases, except when otherwise noted in the product listing. -
Cross-Shipments
HornBlasters.com will not cross-ship returned merchandise. -
Physical Damage Policy
Physical damage to any product purchased at HornBlasters.com will effectively void warranty coverage. Physical damage includes but is not limited to improper handling and/or any other type of damage sustained by irregular usage.
