Viair Dual Stealth Black 485C Onboard Air System - 20185
HomeStore

Viair Dual Stealth Black 485C Onboard Air System - 20185

Viair Dual Stealth Black 485C Onboard Air System - 20185

World-class performance and packed with extras, the Viair 20185 Dual Stealth Black 485C Onboard Air System is the premium onboard air solution design for those that only want the best of the best. Sporting two of Viair’s second-generation Stealth Black 485C Compressors, the Viair 20185 Dual Stealth Black 485C Onboard Air System runs faster, longer, and quieter than any of its predecessors. As a 200 PSI system that is 100% constant duty, the Viair 20185 Dual Stealth Black 485C Onboard Air System will easily handle any pneumatic task you can throw at it, such as powering air lockers, air tools, airing up ties up to 40”, and blasting your HornBlasters Horns! Unbelievably fast as well, the Viair 20185 Dual Stealth Black 485C Onboard Air System will fill from empty to full in 2 minutes and 20 seconds and will recharge the system from 165-200 PSI in a shocking 35 seconds!

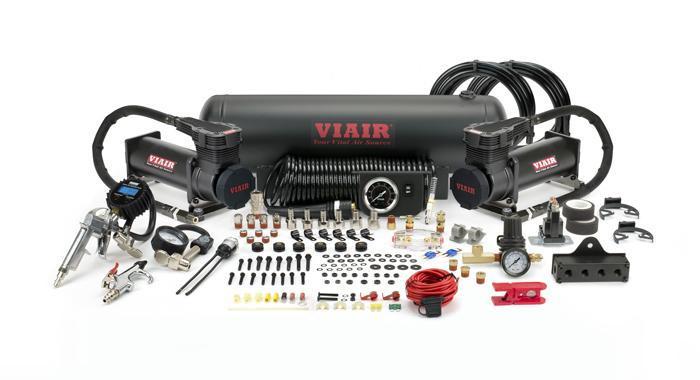

As a complete kit, the Viair 20185 Dual Stealth Black 485C Onboard Air System includes all parts and hardware needed, including 20 feet of 20” Air Line, 165-200 PSI Pressure Switch, 40-Amp Relay, 1/4" NPT Drain Cock, 1/4" NPT Compression Fitting, 250 PSI Safety Valve and 20 feet of 12-Gauge Wire. The Viair 20185 Dual Stealth Black 485C Onboard Air System comes pre-packaged with all the accessories you need to get the most out of this kit, including an air source relocation kit, air pressure regulator, 30-foot coil hose with 200 PSI air gun with gauge, as well as a dash panel with a built-in gauge.

2.5 GALLON TANK FILL RATE
0 to 200 PSI 2 min. 20 sec. (± 10 sec.)
165 to 200 PSI 35 sec. (± 03 sec.)
37″ X 12.5″ FILL RATE
0 to 30 PSI 3 min. 46 sec. (± 10 sec.)
15 to 30 PSI 1 min. 52 sec. (± 10 sec.)
40″ X 15.5″ FILL RATE
0 to 30 PSI 4 min. 39 sec. (± 15 sec.)
15 to 30 PSI 2 min. 02 sec. (± 10 sec.)
  • Viair 2.5 Gallon Air Tank
  • Dual Viair 485C Stealth Black Air Compressors
  • 30ft. Coil Hose w/ Quick Connects
  • Tire Inflation Gun with 200 PSI Gauge
  • 0-150 PSI Pressure Regulator
  • 1/4in NPT Quick Connect Coupler (F)
  • Pressure Switch (165 PSI on, 200 PSI off)
  • (2) 40-Amp Relays
  • Inline Fuse Holder w/ Fuse
  • 1/4in NPT 250 PSI Safety Valve
  • 1/4in NPT Drain Cock
  • (2) 1/8in BSP to 1/4in NPT (Air Locker Use)
  • (3) 1/4in NPT Compression Fittings
  • (5) 1/4in NPT Plugs Kit
  • 6-Port Billet Manifold with Mounting Bracket (1/4in)
  • (2) 15ft. 1/4in Air Line
  • Electrical Connections
Part Number AS-2485DK
Manufacturer Viair
MPN 20185
Refill Time 35 Seconds
Empty Fill Time 2 Min 30 Sec.
Operating Pressure 200 PSI
Restart Pressure 165 PSIs
Safety Valve 235 PSI
Relay 40 amps (each)
Air Tank Viair 2.5 Gallon 200 PSI 6 Port Tank
Tank Part Number TA-206V4
Tank MPN 91028
Tank Volume 2.5 gal (9.5 L)
Tank Ports 6 x ¼″ NPT
Tank Length 23.50″ (596.9 mm)
Tank Width 6.00″ (152.4 mm)
Tank Height 7.50″ (190.5 mm)
Tank Weight 11.805 lb (5.35 Kg)
Air Compressors 2x Viair Stealth Black 485C Air Compressors
Compressor Part Number AC-485C
Compressor MPN 48542
Voltage 12 volts DC
Max Amperage 44 amps (22 each)
Max Output 4.48 CFM (2.24 each)
Maximum Duty Cycle 100% @ 200 PSI
Compressor Length 10.63″ (270 mm) (each)
Compressor Width 4.1″ (101.6 mm) (each)
Compressor Height 6.44″ (163.57 mm) (each)
Compressor Weight 9.75 lb (4.42 Kg) (each)
Pressure Switch Viair 165/200 PSI Switch
Pressure Switch PN PS-200R
Pressure Switch MPN 90118
Pressure Switch Fitting ⅛″ NPT male
Tire Inflation Chuck Type Inflation Gun
Inflation Gun Max Press. 200 PSI
Hose Length 30 ft (9.14 m)
