Viair Dual Stealth Black 480C Onboard Air System - 20022
HomeStore

Viair Dual Stealth Black 480C Onboard Air System - 20022

Viair Dual Stealth Black 480C Onboard Air System - 20022

Delivering the stellar performance and rock-solid dependability you have come to expect from Viair, the Viair 20022 Stealth Black Dual 480C Onboard Air System is back in black with twin Viair 480C Stealth Black Compressors. Featuring an all-new head design to improve the CFM and longevity of the compressors. This 200 PSI beast of a system gives you the power to tackle almost any pneumatic job you need to take care of whether it’s powering air lockers, air tools, airing up ties up to 40”, or blasting your HornBlaster Horns, and much more! The twin 480C Stealth Black Compressors powering the system gives you a 100% duty cycle up to 100 PSI and will recharge the included Viair 2.5-gallon tank from 165-200 PSI in only 46 seconds!

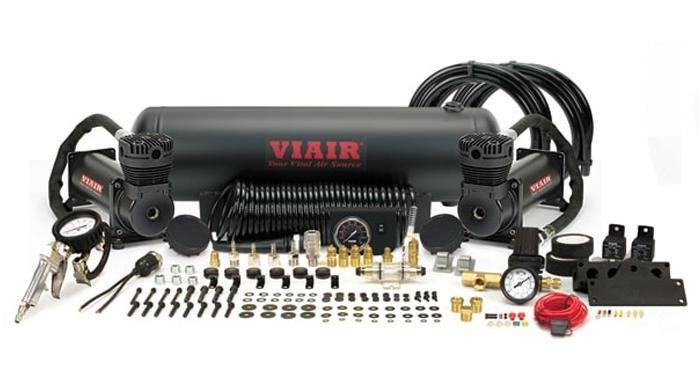

As a complete kit, the Viair Stealth Black Dual 480C Onboard Air System includes all parts and hardware needed, including 20 feet of 20” Airline, 165-200 PSI Pressure Switch, 40-Amp Relay, 1/4" NPT Drain Cock, 1/4" NPT Compression Fitting, 250 PSI Safety Valve and 20 feet of 12-Gauge Wire. Viair made sure to outfit you with everything you will need to get the most out of this kit, including an air source relocation kit, air pressure regulator, 30-foot coil hose with 200 PSI air gun with gauge, as well as a dash panel with a built-in gauge.

2.5 GALLON TANK FILL RATE
0 to 200 PSI 2 min. 30 sec. (± 10 sec.)
165 to 200 PSI 46 sec. (± 05 sec.)
37″ X 12.5″ FILL RATE
0 to 30 PSI 3 min. 50 sec. (± 10 sec.)
15 to 30 PSI 1 min. 55 sec. (± 05 sec.)
40″ X 15.5″ FILL RATE
0 to 30 PSI 4 min. 40 sec. (± 10 sec.)
15 to 30 PSI 2 min. 00 sec. (± 05 sec.)
  • Viair 2.5 Gallon Air Tank
  • Dual Viair 480C Stealth Black Air Compressors
  • 30ft. Coil Hose w/ Quick Connects
  • Tire Inflation Gun with 200 PSI Gauge
  • 0-150 PSI Pressure Regulator
  • 1/4in NPT Quick Connect Coupler (F)
  • Pressure Switch (165 PSI on, 200 PSI off)
  • (2) 40-Amp Relays
  • Inline Fuse Holder w/ Fuse
  • 1/4in NPT 250 PSI Safety Valve
  • 1/4in NPT Drain Cock
  • (2) 1/8in BSP to 1/4in NPT (Air Locker Use)
  • (3) 1/4in NPT Compression Fittings
  • (5) 1/4in NPT Plugs Kit
  • 6-Port Billet Manifold with Mounting Bracket (1/4in)
  • (2) 15ft. 1/4in Air Line
  • Electrical Connections
Part Number AS-248DK
Manufacturer Viair
MPN 20022
Refill Time 35 Seconds
Empty Fill Time 2 Min 30 Sec.
Operating Pressure 200 PSI
Restart Pressure 165 PSI
Safety Valve 235 PSI
Relay 40 amps (each)
Air Tank Viair 2.5 Gallon 200 PSI 6 Port Tank
Tank Part Number TA-206V4
Tank MPN 91028
Tank Volume 2.5 gal (9.5 L)
Tank Ports 6 x ¼″ NPT
Tank Length 23.50″ (596.9 mm)
Tank Width 6.00″ (152.4 mm)
Tank Height 7.50″ (190.5 mm)
Tank Weight 11.805 lb (5.35 Kg)
Air Compressors 2x Viair Stealth Black 480C Air Compressors
Compressor Part Number AC-480K
Compressor MPN 48042
Voltage 12 volts DC
Max Amperage 40 amps (20 each)
Max Output 3.52 CFM (1.76 each)
Maximum Duty Cycle 100% @ 100 PSI
Compressor Length 11.25″ (285.75 mm) (each)
Compressor Width 4.0″ (101.6 mm) (each)
Compressor Height 6.75″ (171.45 mm) (each)
Compressor Weight 9.75 lb (4.42 Kg) (each)
Pressure Switch Viair 165/200 PSI Switch
Pressure Switch PN PS-200R
Pressure Switch MPN 90118
Pressure Switch Fitting ⅛″ NPT male
Tire Inflation Chuck Type Inflation Gun
Inflation Gun Max Press. 200 PSI
Hose Length 30 ft (9.14 m)
  • Money-Back Guarantee/Refund Policy
    All merchandise unless otherwise indicated may be returned within 30 days from the shipment arrival date for a refund. A Returned Merchandise Authorization (RMA) number is required for all returns. A 15% restocking fee may apply. Additional deductions may be made to reflect the products current market value. These terms apply to all refunds. Most products are shipped with a refund/replacement guarantee period unless otherwise noted in the product listing. Customers must inform HornBlasters.com of any order discrepancy within 7 days from the invoice date so that we may investigate and resolve the situation accordingly.
  • Warranty
    This product is backed by Viair's 1-year manufacturer's warranty! All Warranty claims for Viair products must be handled directly through Viair after 30 days. They can be reached at 1-949-585-0011.
  • HornBlasters.com Satisfaction Guarantee
    HornBlasters.com offers our customers a 30-day satisfaction replacement or refund guarantee on all purchases, except when otherwise noted in the product listing.
  • Cross-Shipments
    HornBlasters.com will not cross-ship returned merchandise.
  • Physical Damage Policy
    Physical damage to any product purchased at HornBlasters.com will effectively void warranty coverage. Physical damage includes but is not limited to improper handling and/or any other type of damage sustained by irregular usage.
$311.13
