Viair Dual Chrome 480C Onboard Air System - 20021
A complete onboard air solution you can trust to go the extra mile, the Viair 20021 Dual 480C Onboard Air System delivers unparalleled dependability and performance. Featuring dual Viair 480C Compressors with a new and improved head design to improve CFM and heat ventilation, this complete 200 PSI onboard air solution will ensure you always can handle any pneumatic task life throws at you, able to power air locker, air tools, tires up to 40”, HornBlasters Horns and much more! The twin 480C Chrome Compressors powering the system gives you a 100% duty cycle up to 100 PSI and will recharge the included Viair 2.5-gallon tank from 165-200 PSI in only 46 seconds!
As a complete kit, the Viair Dual 480C Onboard Air System includes all parts and hardware needed, including 20 feet of 20” Air Line, 165-200 PSI Pressure Switch, 40-Amp Relay, 1/4" NPT Drain Cock, 1/4" NPT Compression Fitting, 250 PSI Safety Valve and 20 feet of 12-Gauge Wire. Viair made sure to outfit you with everything you will need to get the most out of this kit, including an air source relocation kit, air pressure regulator, 30-foot coil hose with 200 PSI air gun with gauge, as well as a dash panel with a built-in gauge.
| 2.5 GALLON TANK | FILL RATE |
|---|---|
| 0 to 200 PSI | 2 min. 30 sec. (± 10 sec.) |
| 165 to 200 PSI | 46 sec. (± 05 sec.) |
| 37″ X 12.5″ | FILL RATE |
| 0 to 30 PSI | 3 min. 50 sec. (± 10 sec.) |
| 15 to 30 PSI | 1 min. 55 sec. (± 05 sec.) |
| 40″ X 15.5″ | FILL RATE |
| 0 to 30 PSI | 4 min. 40 sec. (± 10 sec.) |
| 15 to 30 PSI | 2 min. 00 sec. (± 05 sec.) |

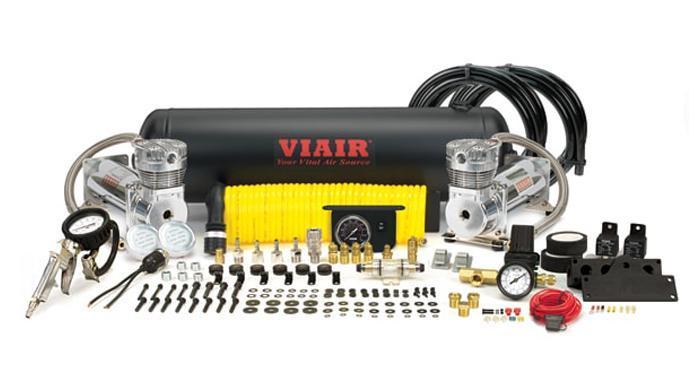

- Viair 2.5 Gallon Air Tank
- Dual Viair 480C Chrome Air Compressors
- 30ft. Coil Hose w/ Quick Connects
- Tire Inflation Gun with 200 PSI Gauge
- 0-150 PSI Pressure Regulator
- 1/4in NPT Quick Connect Coupler (F)
- Pressure Switch (165 PSI on, 200 PSI off)
- (2) 40-Amp Relays
- Inline Fuse Holder w/ Fuse
- 1/4in NPT 250 PSI Safety Valve
- 1/4in NPT Drain Cock
- (2) 1/8in BSP to 1/4in NPT (Air Locker Use)
- (3) 1/4in NPT Compression Fittings
- (5) 1/4in NPT Plugs Kit
- 6-Port Billet Manifold with Mounting Bracket (1/4in)
- (2) 15ft. 1/4in Air Line
- Electrical Connections
| Part Number | AS-248D |
| Manufacturer | Viair |
| MPN | 20021 |
| Refill Time | 35 Seconds |
| Empty Fill Time | 2 Min 30 Sec. |
| Operating Pressure | 200 PSI |
| Restart Pressure | 165 PSI |
| Safety Valve | 235 PSI |
| Relay | 40 amps (each) |
| Air Source Kit Tank | Viair 2.5 Gallon 200 PSI 6 Port Tank |
| Tank Part Number | TA-206V4 |
| Tank MPN | 91028 |
| Tank Volume | 2.5 gal (9.5 L) |
| Tank Ports | 6 x ¼″ NPT |
| Tank Length | 23.50″ (596.9 mm) |
| Tank Width | 6.00″ (152.4 mm) |
| Tank Height | 7.50″ (190.5 mm) |
| Tank Weight | 11.805 lb (5.35 Kg) |
| Air Source Kit Compressor | 2x Viair Chrome 480C Air Compressors |
| Compressor Part Number | AC-480C |
| Compressor MPN | 48032 |
| Voltage | 12 volts DC |
| Max Amperage | 40 amps (20 each) |
| Max Output | 3.52 CFM (1.76 each) |
| Maximum Duty Cycle | 100% @ 100 PSI |
| Compressor Length | 11.25″ (285.75 mm) (each) |
| Compressor Width | 4.0″ (101.6 mm) (each) |
| Compressor Height | 6.75″ (171.45 mm) (each) |
| Compressor Weight | 9.75 lb (4.42 Kg) (each) |
| Pressure Switch | Viair 165/200 PSI Switch |
| Pressure Switch PN | PS-200R |
| Pressure Switch MPN | 90118 |
| Pressure Switch Fitting | ⅛″ NPT male |
| Tire Inflation Chuck Type | Inflation Gun |
| Inflation Gun Max Press. | 200 PSI |
| Hose Length | 30 ft (9.14 m) |
-
