Viair Dual Platinum 485C Onboard Air System - 20085

Viair Dual Platinum 485C Onboard Air System - 20085

If you are looking for a complete onboard air solution and won’t settle for anything but the best for your ride, the Viair 20085 Dual Platinum 485C Onboard Air System is the answer you have been looking for. Rocking two of Viair’s latest and greatest compressors, the Viair 20085 Dual Platinum 485C Onboard Air System is both a fast-fill and constant duty system with a 100% duty cycle all the way up to 200 PSI and lightning-fast refill times. These beastly dual Platinum Viair 485C Compressors are able to fill the included 2.5-gallon tank from empty to full in 2 minutes and 20 seconds and will recharge the system from 165-200 PSI in a lightning-fast 35 seconds! This premium system is capable of powering air lockers, air tools, airing up ties up to 40”, blasting your HornBlaster Horns, and much more without breaking a sweat.

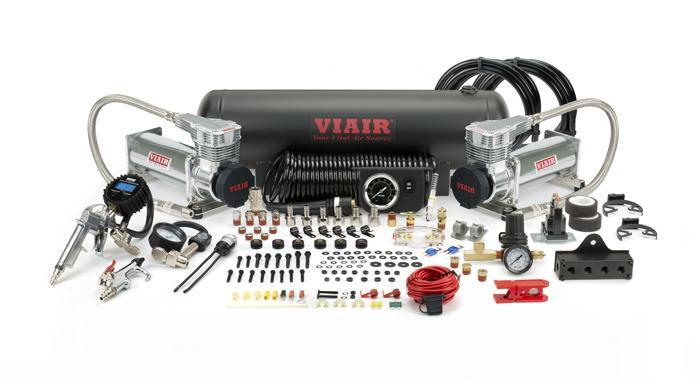

As a complete kit, the Viair 20085 Dual Platinum 485C Onboard Air System includes all parts and hardware needed, including 20 feet of 20” Air Line, 165-200 PSI Pressure Switch, 40-Amp Relay, 1/4" NPT Drain Cock, 1/4" NPT Compression Fitting, 250 PSI Safety Valve and 20 feet of 12-Gauge Wire. The Viair 20085 Dual Platinum 485C Onboard Air System comes loaded with extras to give you everything you need to get the most out of one of the best onboard air kits you can buy, including an air source relocation kit, air pressure regulator, 30-foot coil hose with 200 PSI air gun with gauge, as well as a dash panel with a built-in gauge.

2.5 GALLON TANK FILL RATE
0 to 200 PSI 2 min. 20 sec. (± 10 sec.)
165 to 200 PSI 35 sec. (± 03 sec.)
37″ X 12.5″ FILL RATE
0 to 30 PSI 3 min. 46 sec. (± 10 sec.)
15 to 30 PSI 1 min. 52 sec. (± 10 sec.)
40″ X 15.5″ FILL RATE
0 to 30 PSI 4 min. 39 sec. (± 15 sec.)
15 to 30 PSI 2 min. 02 sec. (± 10 sec.)
  • Viair 2.5 Gallon Air Tank
  • Dual Viair 485C Platinum Air Compressors
  • 30ft. Coil Hose w/ Quick Connects
  • Tire Inflation Gun with 200 PSI Gauge
  • 0-150 PSI Pressure Regulator
  • 1/4in NPT Quick Connect Coupler (F)
  • Pressure Switch (165 PSI on, 200 PSI off)
  • (2) 40-Amp Relays
  • Inline Fuse Holder w/ Fuse
  • 1/4in NPT 250 PSI Safety Valve
  • 1/4in NPT Drain Cock
  • (2) 1/8in BSP to 1/4in NPT (Air Locker Use)
  • (3) 1/4in NPT Compression Fittings
  • (5) 1/4in NPT Plugs Kit
  • 6-Port Billet Manifold with Mounting Bracket (1/4in)
  • (2) 15ft. 1/4in Air Line
  • Electrical Connections
Part Number AS-2485D
Manufacturer Viair
MPN 20085
Refill Time 35 Seconds
Empty Fill Time 2 Min 30 Sec.
Operating Pressure 200 PSI
Restart Pressure 165 PSI
Safety Valve 235 PSI
Relay 40 amps (each)
Air Tank Viair 2.5 Gallon 200 PSI 6 Port Tank
Tank Part Number TA-206V4
Tank MPN 91028
Tank Volume 2.5 gal (9.5 L)
Tank Ports 6 x ¼″ NPT
Tank Length 23.50″ (596.9 mm)
Tank Width 6.00″ (152.4 mm)
Tank Height 7.50″ (190.5 mm)
Tank Weight 11.805 lb (5.35 Kg)
Air Compressors 2x Viair Platinum 485C Air Compressors
Compressor Part Number AC-485L
Compressor MPN 48532
Voltage 12 volts DC
Max Amperage 44 amps (22 each)
Max Output 4.48 CFM (2.24 each)
Maximum Duty Cycle 100% @ 200 PSI
Compressor Length 11.25″ (285.75 mm) (each)
Compressor Width 4.0″ (101.6 mm) (each)
Compressor Height 6.75″ (171.45 mm) (each)
Compressor Weight 9.75 lb (4.42 Kg) (each)
Pressure Switch Viair 165/200 PSI Switch
Pressure Switch PN PS-200R
Pressure Switch MPN 90118
Pressure Switch Fitting ⅛″ NPT male
Tire Inflation Chuck Type Inflation Gun
Inflation Gun Max Press. 200 PSI
Hose Length 30 ft (9.14 m)
