Viair Dual 280C Onboard Air System - 20011

Viair Dual 280C Onboard Air System - 20011

The Viair 20011 is an extremely dependable, 2.5-gallon air system. This single part supplies you with everything to install an extremely reliable, and sophisticated onboard air system. With this system installed you’ll be able to air up tires on the go or even perform roadside repairs with air tools. The 20011 kit includes a 2.5-gallon air tank, two 280C air compressors, a -foot coil hose, a tire inflation gun, a 0-200 PSI pressure regulator, a billet air distribution block, and just about every extra you could imagine.

2.5 GALLON TANK FILL RATE
0 to 105 PSI 1 min. 06 sec. (± 10 sec.)
85 to 105 PSI 16 sec. (± 03 sec.)
0 to 145 PSI 1 min. 44 sec. (± 10 sec.)
110 to 145 PSI 31 sec. (± 05 sec.)
33″ X 12.5″ FILL RATE
0 to 30 PSI 4 min. 10 sec. (± 15 sec.)
15 to 30 PSI 1 min. 50 sec. (± 10 sec.)
35″ X 15.5″ FILL RATE
0 to 30 PSI 5 min. 02 sec. (± 15 sec.)
15 to 30 PSI 2 min. 15 sec. (± 10 sec.)

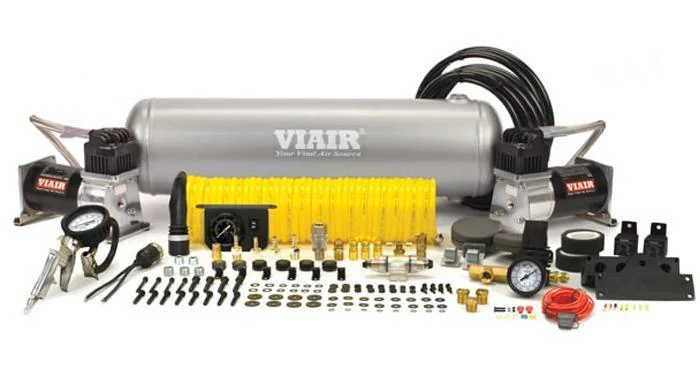

  • Viair 2.5 Gallon Air Tank
  • Dual Viair 280C Black & Silver Air Compressors
  • 30ft. Coil Hose w/ Quick Connects
  • Tire Inflation Gun with 200 PSI Gauge
  • 0-150 PSI Pressure Regulator
  • 1/4in NPT Quick Connect Coupler (F)
  • Pressure Switch (110 PSI on, 150 PSI off)
  • (2) 40-Amp Relays
  • Inline Fuse Holder w/ Fuse
  • 1/4in NPT 250 PSI Safety Valve
  • 1/4in NPT Drain Cock
  • (2) 1/8in BSP to 1/4in NPT (Air Locker Use)
  • (3) 1/4in NPT Compression Fittings
  • (5) 1/4in NPT Plugs Kit
  • 6-Port Billet Manifold with Mounting Bracket (1/4in)
  • (2) 15ft. 1/4in Air Line
  • Electrical Connections
Part Number AS-280DK
Manufacturer Viair
MPN 20011
Refill Time 53 Seconds
Empty Fill Time 3 Min 13 Sec.
Operating Pressure 150 PSI
Max Pressure 150 PSI
Restart Pressure 110 PSI
Drain Cock Yes
Safety Valve Yes, 175 PSI
Relay Yes, 40 amps
Wiring Kit Included
Fitting Kit Included
Instructions Included
Warranty 1 Year Limited Lifetime
Air Source Kit Tank Viair 2.5 Gallon 200 PSI 6 Port Tank
Tank Part Number TA-206V4
Tank MPN 91028
Tank Volume 2.5 gals (9.5 L)
Tank Ports 6 x ¼″ NPT
Tank Length 23.50″ (596.9 mm)
Tank Width 6.00″ (152.4 mm)
Tank Height 7.50″ (190.5 mm)
Tank Weight 11.805 lb (5.35 Kg)
Air Source Kit Compressor 2x Viair Black & Silver 280 Air Compressor
Compressor Part Number AC-280
Compressor MPN 28002
Voltage 12 volts DC
Max Amperage 32 amps (16 each)
Max Output 2.98 CFM (1.49 each)
Maximum Duty Cycle 30% @ 100 PSI
Maximum Working Pressure 200 PSI
Compressor Length 7.80″ (198.12 mm) (each)
Compressor Width 3.94″ (100 mm) (each)
Compressor Height 6.75″ (171.5 mm) (each)
Compressor Weight 8.00 lb (3.63 Kg) (each)
Pressure Switch Viair 110/150 PSI Switch
Pressure Switch PN PS-150R
Pressure Switch MPN 90111
Pressure Switch Fitting 1x ⅛″ NPT male
Turn-Off Pressure 150 PSI
Restart Pressure 150 PSI
Pressure Switch Max Amps 40 amps
Tire Inflation Chuck Type Inflation Gun
Inflation Gun Max Press. 200 PSI
Inflation Gun Gauge Press. 200 PSI
Hose Length 30 ft (9.14 m)
