Viair Heavy Duty Onboard Air System - 10005
HomeStore

Viair Heavy Duty Onboard Air System - 10005

Viair Heavy Duty Onboard Air System - 10005

AIR WHERE YOU NEED IT.

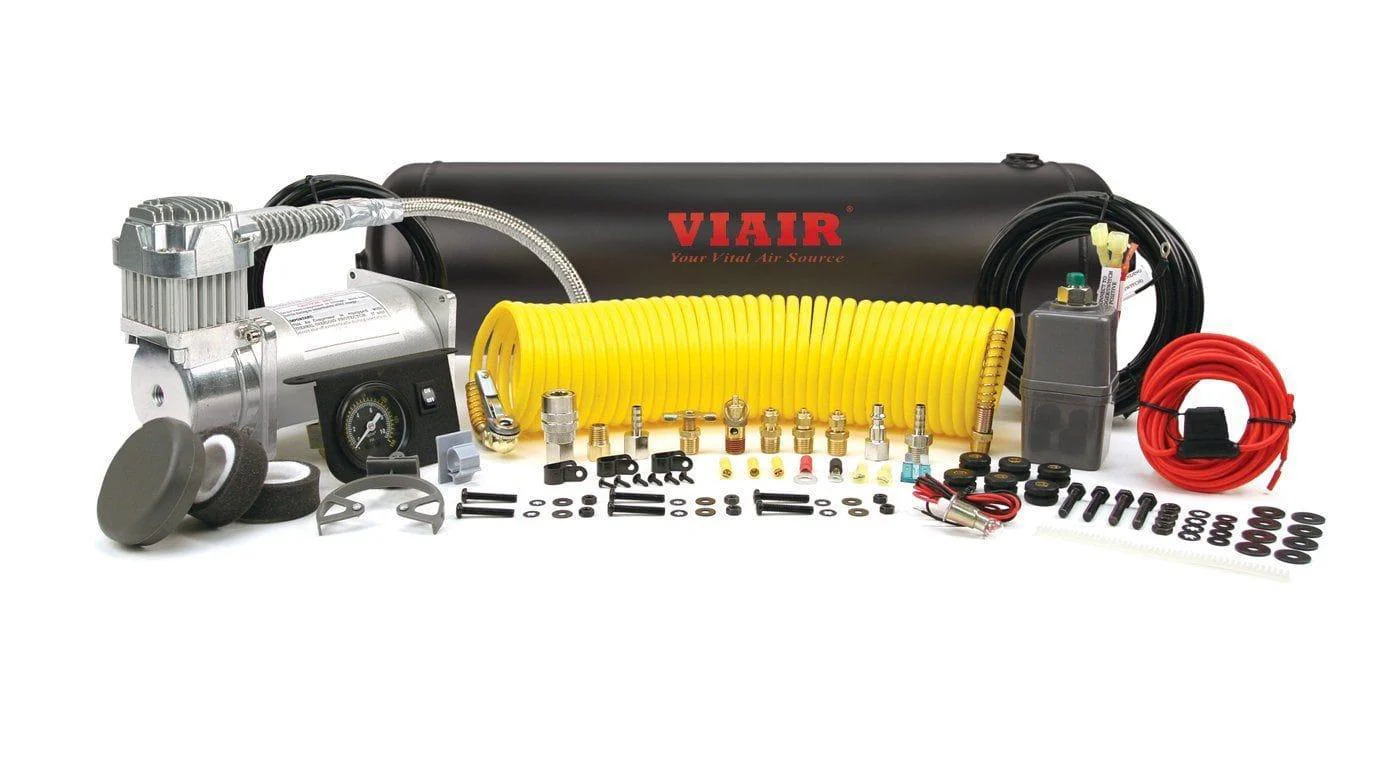

Meet Viair's 10005 Heavy Duty Onboard Air System, a powerful and reliable solution for air inflation, air tools, and powering horns! This 33% duty cycle system can quickly handle tires up to 35" and even includes a tire inflation kit. The speedy 400C Air Compressor fills the 2.5-Gallon 6-Port Air Tank in just 2 minutes and 20 seconds and recharges from 110-145 PSI in only 48 seconds!

The complete kit comes with everything you need, like 20 feet of 20" Air Line, 110-150 PSI Pressure Switch, Dash Panel Gauge with ON/OFF Switch, 40-Amp Relay, 1/4" NPT Drain Cock, 1/4" NPT Compression Fitting, 175 PSI Safety Valve, and 20 feet of 12-Gauge Wire.

2.5 GALLON TANK FILL RATE
0 to 145 PSI 2 min. 20 sec. (± 05 sec.)
110 to 145 PSI 48 sec. (± 03 sec.)
33″ X 12.5″ FILL RATE
0 to 30 PSI 4 min. 20 sec. (± 10 sec.)
15 to 30 PSI 2 min. 05 sec. (± 05 sec.)
35″ X 12.5″ FILL RATE
0 to 30 PSI 5 min. 20 sec. (± 15 sec.)
15 to 30 PSI 2 min. 45 sec. (± 10 sec.)
RV TIRES 275/80R22.5 FILL RATE
80 to 90 PSI 30 sec. (± 05 sec.)
90 to 100 PSI 3 min. 50 sec. (± 10 sec.)
110 to 130 PSI 4 min. 37 sec. (± 15 sec.)

  • Viair 2.5 Gallon Air Tank
  • Viair 400C Air Compressor
  • 1/4" Air Line
  • 1/4" NPT Quick Connect Coupler (M)
  • Dash Panel Gauge with ON/OFF Switch
  • Pressure Switch with Relay (110 PSI on, 150 PSI off)
  • Reducer (1/8" NPT F to 1/4" NPT M)
  • 1/4" NPT 175 PSI Safety Valve
  • 1/4" Drain Cock
  • 1/4" NPT Compression Fittings
  • 4-inch Strip of Continuous Grommet Material
  • 20 ft 12 Gauge Wire with Inline Fuse Holder

Manufacturer Viair
MPN 10005
Refill Time 48 Seconds
Empty Fill Time 2 Min. 20 Sec.
Operating Pressure 150 PSI
Restart Pressure 110 PSI
Drain Cock Yes
Safety Valve Yes, 175 PSI
Relay Yes, 40 amps
Tank Viair 2.5 Gallon 150 PSI 6 Port Tank
Part Number TA-206V2
MPN 91025
Volume 2.5 gals (9.5 L)
Ports 6x ¼″ NPT
Tank Length 23.50″ (596.9 mm)
Tank Width 6.00″ (152.4 mm)
Tank Height 7.50″ (190.5 mm)
Tank Weight 11.925 lb (5.41 Kg)
Air Compressor Viair 400 Air Compressor
Part Number AC-400
MPN 40040
Voltage 12 volts DC
Max Amperage 28 Amps
Max Output 2.62 CFM
Maximum Duty Cycle 30% @ 100 PSI
Compressor Length 9.00″ (228.6 mm)
Compressor Width 4.00″ (101.6 mm)
Compressor Height 6.75″ (171.45 mm)
Compressor Weight 6.95 lb (3.15 Kg)
Pressure Switch Viair 110/150 PSI Switch
Part Number PS-150R
MPN 90111
Pressure Switch Fitting ⅛″ NPT male
