Viair Constant Duty Onboard Air System

Viair Constant Duty Onboard Air System

ONBOARD AIR FOR ONE?

Hit the road with Viair's 10007 Constant Duty Onboard Air System, your ultimate pneumatic sidekick! Inflate tires up to 35", run power tools, load leveling airbags, and more. It even comes with a tire inflation kit and a Dash Panel with a built-in Gauge. The beastly Viair 450C Compressor fills the 2.5-gallon tank in just 3 minutes and 2 seconds, and recharges the system in about 58 seconds.

This complete kit has everything you need, like 20 feet of 20" Air Line, 110-150 PSI Pressure Switch, Dash Panel Gauge with ON/OFF Switch, 40-Amp Relay, 1/4" NPT Drain Cock, 1/4" NPT Compression Fitting, 175 PSI Safety Valve, and 20 feet of 12-Gauge Wire.

2.5 GALLON TANK FILL RATE
0 to 145 PSI 3 min. 02 sec. (± 10 sec.)
110 to 145 PSI 59 sec. (± 05 sec.)
35″ X 12.5″ FILL RATE
0 to 30 PSI 6 min. 55 sec. (± 15 sec.)
15 to 30 PSI 3 min. 30 sec. (± 10 sec.)
37″ X 12.5″ FILL RATE
0 to 30 PSI 7 min. 56 sec. (± 15 sec.)
15 to 30 PSI 4 min. 09 sec. (± 10 sec.)
RV TIRES 275/80R22.5 FILL RATE
80 to 90 PSI 30 sec. (± 05 sec.)
90 to 100 PSI 3 min. 50 sec. (± 10 sec.)
110 to 130 PSI 4 min. 37 sec. (± 15 sec.)

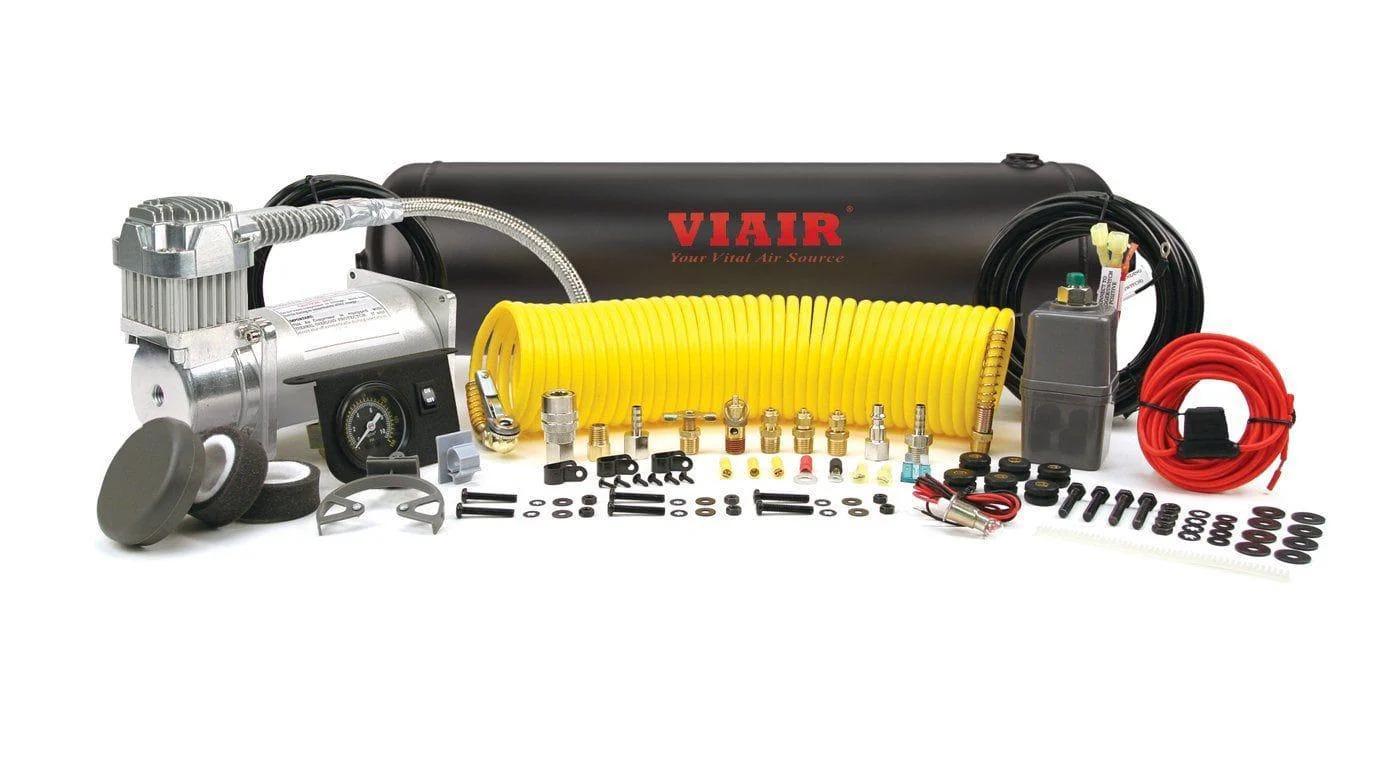

  • Viair 2.5 Gallon Air Tank
  • Viair 450C Air Compressor
  • 1/4" Air Line
  • 1/4" NPT Quick Connect Coupler (M)
  • Dash Panel Gauge with ON/OFF Switch
  • Pressure Switch with Relay (110 PSI on, 150 PSI off)
  • Reducer (1/8" NPT F to 1/4" NPT M)
  • 1/4" NPT 175 PSI Safety Valve
  • 1/4" Drain Cock
  • 1/4" NPT Compression Fittings
  • 4-inch Strip of Continuous Grommet Material
  • 20 ft 12 Gauge Wire with Inline Fuse Holder

Part Number AS-245V
Manufacturer Viair
MPN 10007
Refill Time 59 Seconds.
Empty Fill Time 3 Min 2 Sec.
Operating Pressure 150 PSI
Restart Pressure 110 PSI
Drain Cock Yes
Safety Valve Yes, 175 PSI
Relay Yes, 40 amps
Gauge Yes, 160 PSI
Warranty 1 Year Limited Lifetime
Tank Viair 2.5 Gallon 150 PSI 6 Port Tank
Tank Part Number TA-206V3
Tank MPN 91028
Tank Volume 2.5 gal (9.5 L)
Tank Ports 6 x ¼″ NPT
Tank Length 23.50″ (596.9 mm)
Tank Width 6.00″ (152.4 mm)
Tank Height 7.50″ (190.5 mm
Tank Weight 11.925 lb (5.41 Kg)
Air Source Kit Compressor Viair 450 Air Compressor
Compressor Part Number AC-450
Compressor MPN 45040
Voltage 12 volts DC
Max Amperage 23 amps
Max Output 1.8 CFM
Maximum Duty Cycle 100% @ 100 PSI
Compressor Length 11.25″ (285.75 mm)
Compressor Width 4.00″ (101.6 mm)
Compressor Height 7.00″ (177.8 mm)
Compressor Weight 9.75 lb (4.42 Kg)
Pressure Switch Viair 110/150 PSI Switch
Pressure Switch PN PS-150R
Pressure Switch MPN 90111
Pressure Switch Fitting 1x ⅛″ NPT male
Pressure Switch Max Amps 40 amps
Tire Inflation Chuck Type Chuck
Hose Length 35 ft (10.67 m)

  • Money-Back Guarantee/Refund Policy
    All merchandise unless otherwise indicated may be returned within 30 days from the shipment arrival date for a refund. A Returned Merchandise Authorization (RMA) number is required for all returns. A 15% restocking fee may apply. Additional deductions may be made to reflect the products current market value. These terms apply to all refunds. Most products are shipped with a refund/replacement guarantee period unless otherwise noted in the product listing. Customers must inform HornBlasters.com of any order discrepancy within 7 days from the invoice date so that we may investigate and resolve the situation accordingly.
  • Warranty
    This product is backed by Viair's 1-year manufacturer's warranty! All Warranty claims for Viair products must be handled directly through Viair after 30 days. They can be reached at 1-949-585-0011.
  • HornBlasters.com Satisfaction Guarantee
    HornBlasters.com offers our customers a 30-day satisfaction replacement or refund guarantee on all purchases, except when otherwise noted in the product listing.
  • Cross-Shipments
    HornBlasters.com will not cross-ship returned merchandise.
  • Physical Damage Policy
    Physical damage to any product purchased at HornBlasters.com will effectively void warranty coverage. Physical damage includes but is not limited to improper handling and/or any other type of damage sustained by irregular usage.
